Summit/Americomp AC2 X-Ray System


AmeriComp’s AC2 System Fulfills The Imaging Needs of the Busiest Chiropractic Clinics

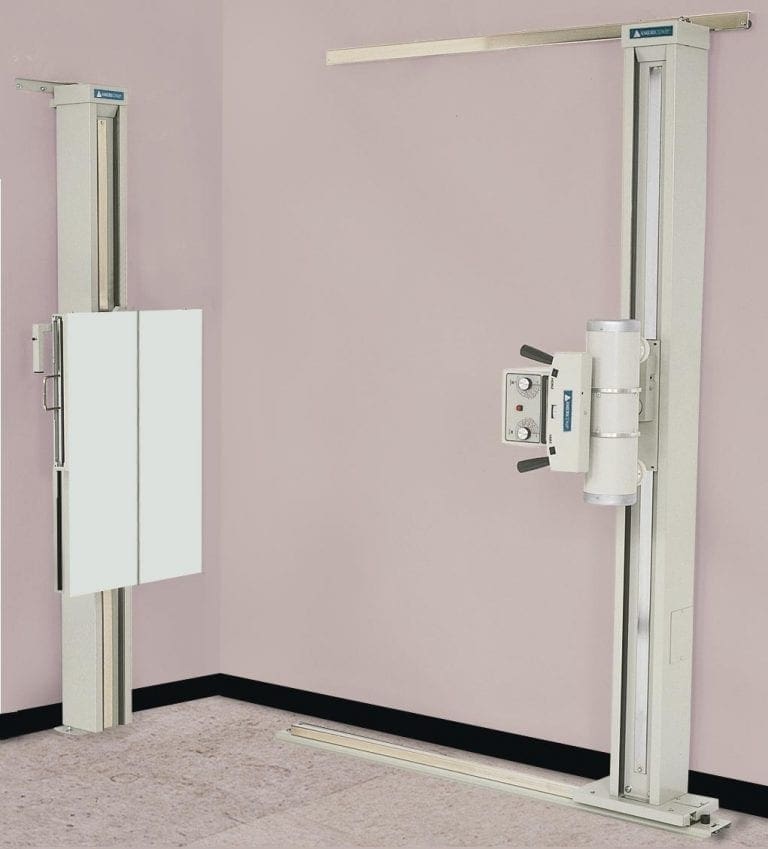

The AC2 System accepts up to a 14″x36″ cassette for full spine imaging. The tubestand is constructed of heavy-duty steel, insuring many years of reliable performance.The FWFC tubestand provides film focal distances of 40″ to 72″.



  • Floor-to-wall or ceiling (specify at time of order)
  • 5 foot tracks
  • 10″ tubearm
  • Angulating port-style tubemount
  • Angulation dial and operator handles
  • Fully counterbalanced
  • Mechanical locks

A120 – TUBE

  • 140,000 H.U., 1.0-2.0 mm focal spot, 90 degree horns

A1921 TRAY

  • Regular-duty manual tray with cassette blocker

A0010 – CABLES

  • 10′ maxi-flex high voltage cables; federal terminations


  • Certified, manual collimator with light field

A3547 – A3444 – WALLSTAND

  • 17″ x 36″ grid cabinet with front panel travels from floor to 76″
  • Specify left or right hand load
  • Mechanical locks
  • Fully counterbalanced
  • Accepts manual tray in “high” or “low” position


  • 103 line 8:1 aluminum grid
