Description

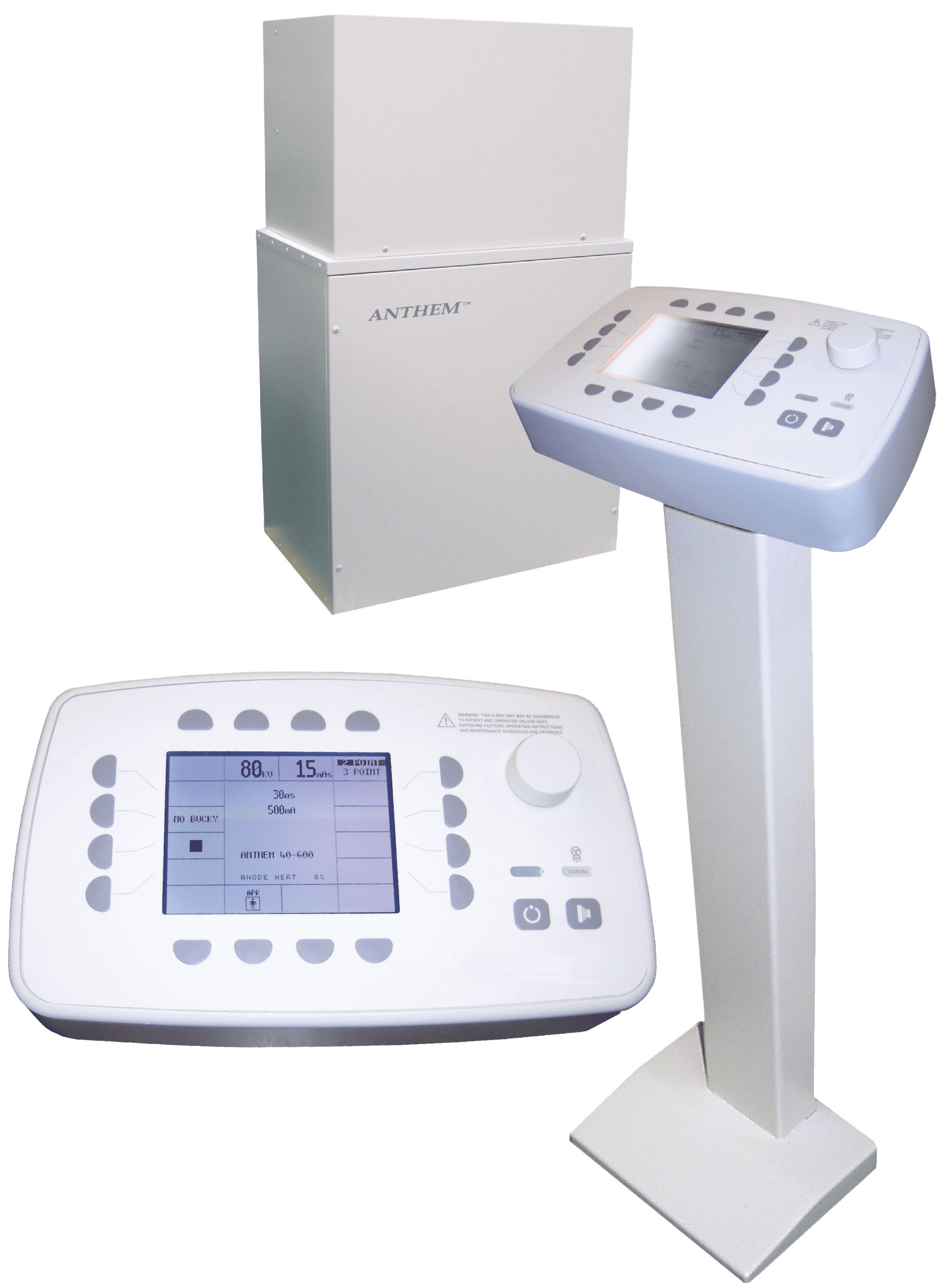

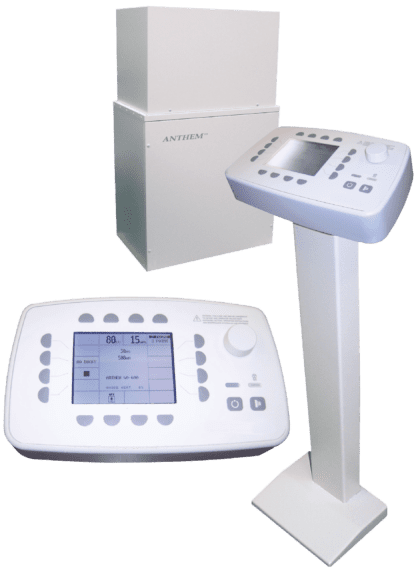

Anthem X-ray Generator
Maximum mA:650
kVp range:40 – 125 kVp
Three-point operation: 15 mA stations:
25S/50S/75S/100S/100L/150L/200L/250L/300L/350L/400L/450L/500L/550L/600L/650L
Time stations:75
Calibration time:10 – 15 min.
Power supply:
208 – 240 VAC 1 Phase
208 – 480 VAC 3 Phase
Available configurations:
– 400 mA, 30 kW, 1P
– 500 mA, 30 kW, 1P
– 500 mA, 32 kW, 3P
– 500 mA, 40 kW, 1P
– 600 mA, 40 kW, 3P
– 650 mA, 50 kW, 3P
Options:
– Wall mount for console
– Exposure handswitch
– Automatic exposure control (AEC)
– In table version
(Available on RT100 radiographic tables only)
