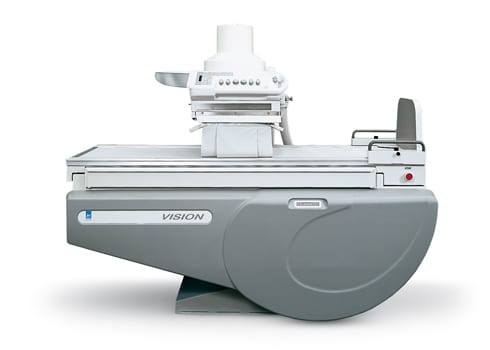

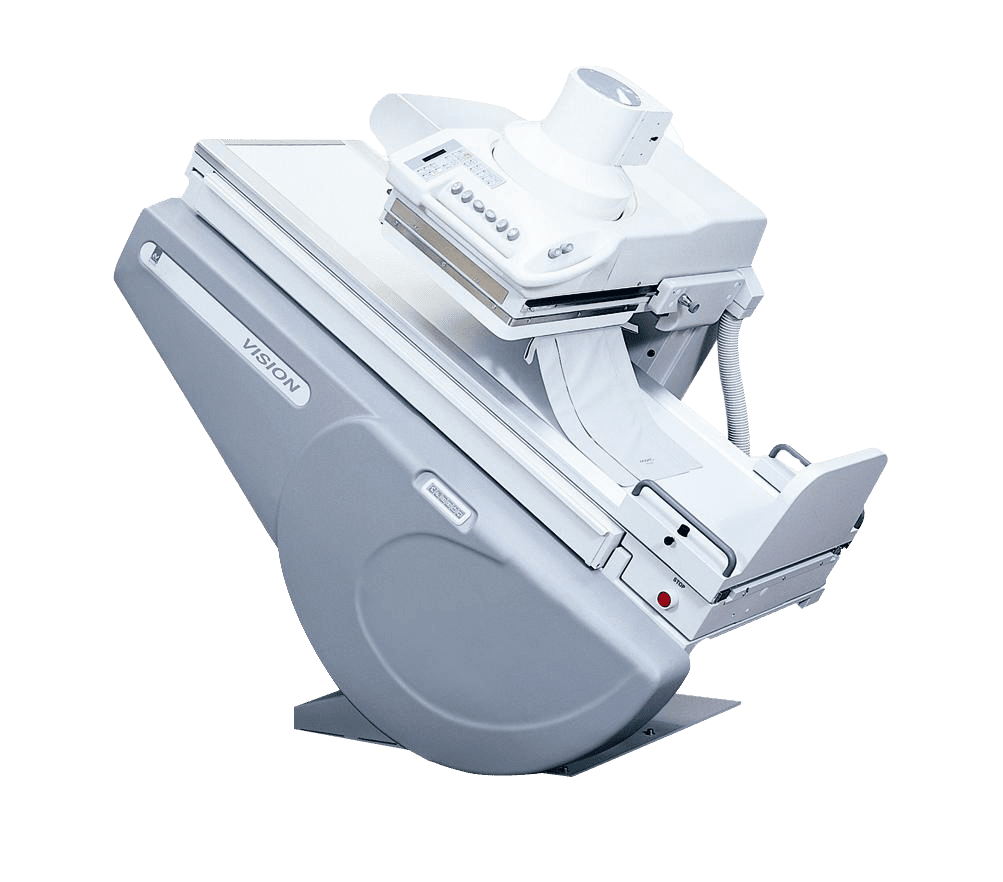

Vision is a high performance conventional R/F system from Villa Sistemi Medicali designed to perform all kinds of R/F studies with maximum efficiency and ease. Thanks to its flexibility, user friendliness and compact dimensions Vision is the ideal choice for a “light” R/F system. Vision can be equipped with different high frequency generators with power levels from 50 to 80kW and a wide range of X-ray tubes that can be chosen to comply with the requirements of your R/F room.

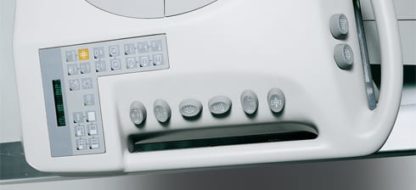

The design of Vision has been specially focused on the Spot Film Device, fully microprocessor controlled with in-line and cross divisions, able to cover all routine applications. The front-loading cassette tray is power assisted, cassette loading and unloading can be performed using just one hand. Fast and accurate cassette positioning assures fast switching between fluoro and exposure mode. The under-table multi-leaf collimator is provided with an automatic SID compensation system that ensures a high accuracy of the irradiated area.

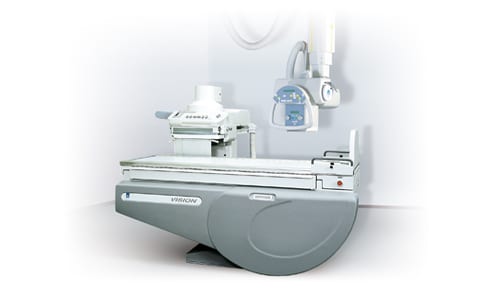

Vision can be provided with an undertable bucky to be used in combination with a floor mounted tubestand or ceiling suspension to create a full-feature diagnostic room. Thanks to its compact footprint, Vision can also be installed in very small facilities. Room size information is keyed into the system by the service engineer during installation, making it possible for software algorithms to recognize the room dimensions and prevent any collision of the unit with floor, ceiling or walls.

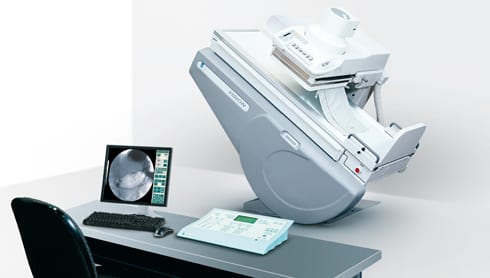

Vision is ready for connection to our Diva digital acquisition systems based on Image Intensifier. Using the digital acquisition system, the application field of Vision can be further extended with the possibility of real-time dynamic exams and Digital Image processing. The digital option dramatically increases efficiency, thanks to reduced examination times and the possibility to connect the system to laser imagers and DICOM networks.
