Bariatric C-Arm Tables

Surgical Tables

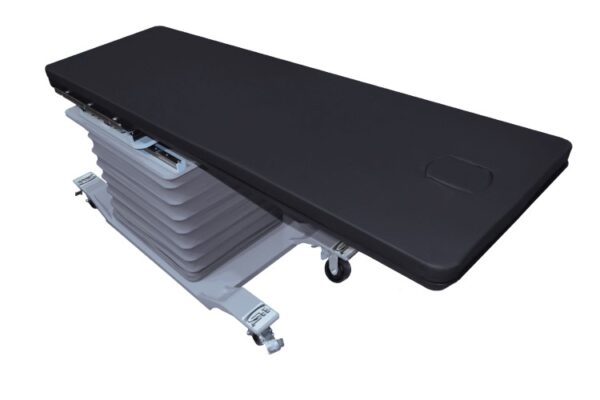

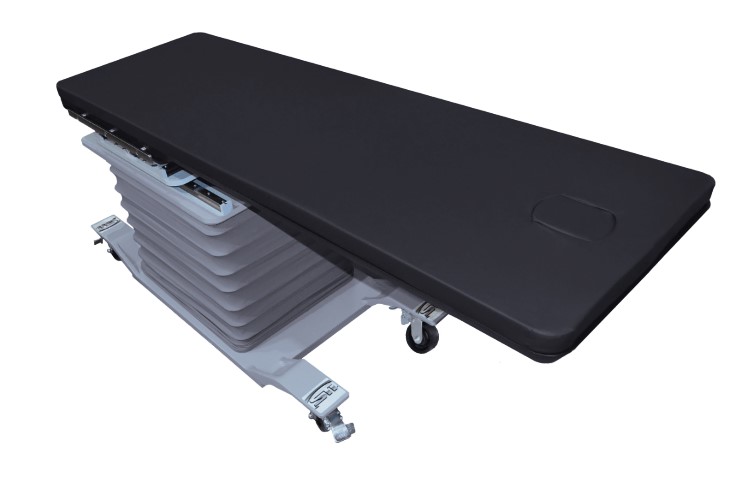

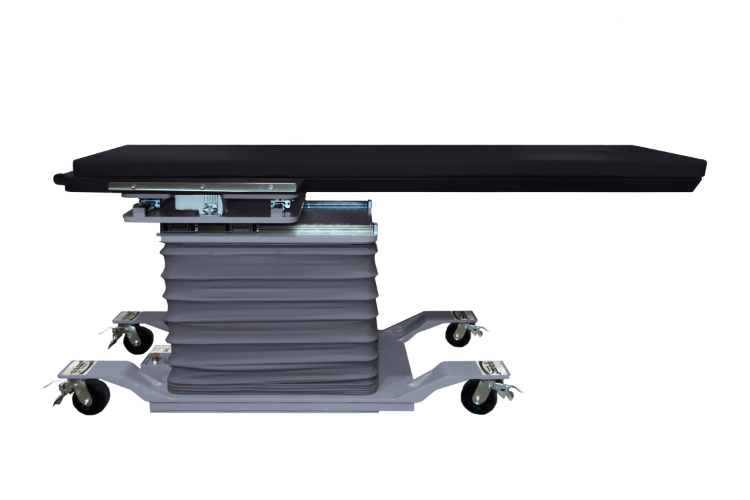

The BT Series Bariatric C-Arm Table is specifically designed to support bariatric surgery and other procedures requiring a robust imaging table. With a weight capacity of up to 1,000 lbs, it is the only diving board-style mobile imaging table on the market capable of handling this load. The table features a 27” wide tabletop and a short H-style square base, ensuring superior c-arm clearance and adaptability.

This versatile table can be used for a variety of procedures, including pain management, spine imaging, GI studies, and bariatric surgery. Manufactured in Massachusetts, the BT Series combines exceptional quality, functionality, and durability with outstanding customer support.

Category: C-Arm

Description

Bariatric c-arm tables feature:

Carbon fiber, diving board style for easy C-arm access
Large patient capacity – high-end actuator motor supports 1,000-pound loads
An 84″ length can accommodate even the tallest of patients
A 27″ top eliminates the need for arm boards
Two-inch thick, high quality patient comfort pad
Facial cut-out for prone procedures
Simple to use, high quality wheel locks
Mobile – can be moved from room to room or within the room

The BT series comes in 3 different models.

Bariatric Series Movements

The Bariatric Series of imaging tables come in three different models, each offering different motorized adjustments:

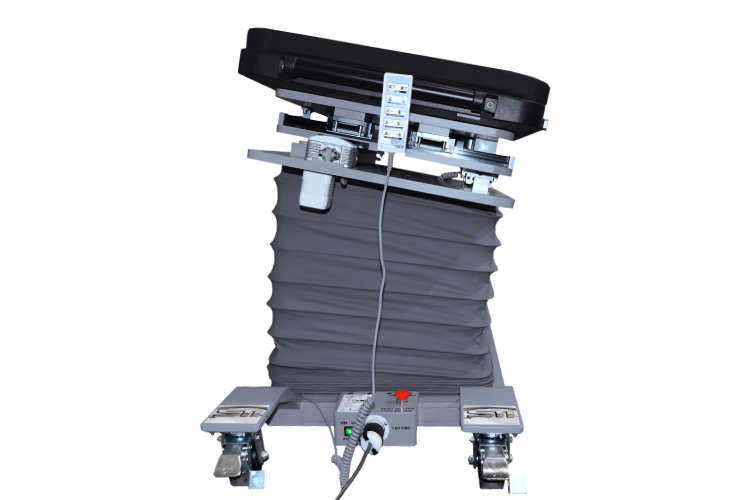

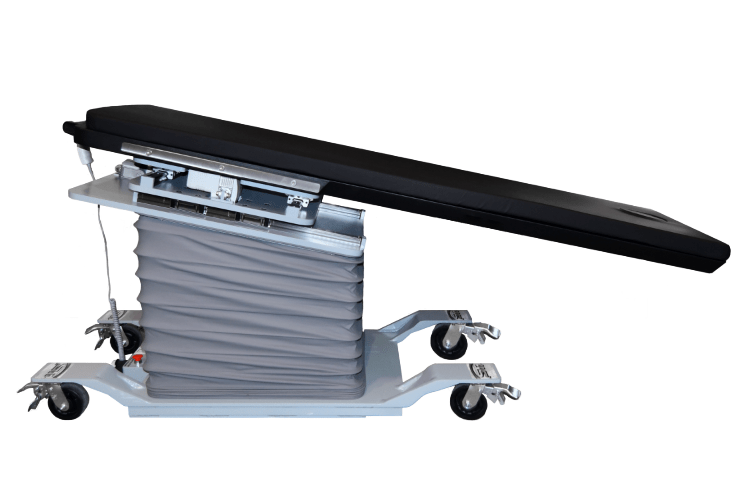

BT-3 offers Height (29″ to 37″) and also Lateral Tilt (+/- 17° ), and Trendelenburg (+/- 12°) adjustments.
BT-4 offers Height (31″ to 39″) and also Lateral Tilt (+/- 17°), Trendelenburg (+/- 12°), and longitudinal travel (16″, +/- 8″) adjustments.

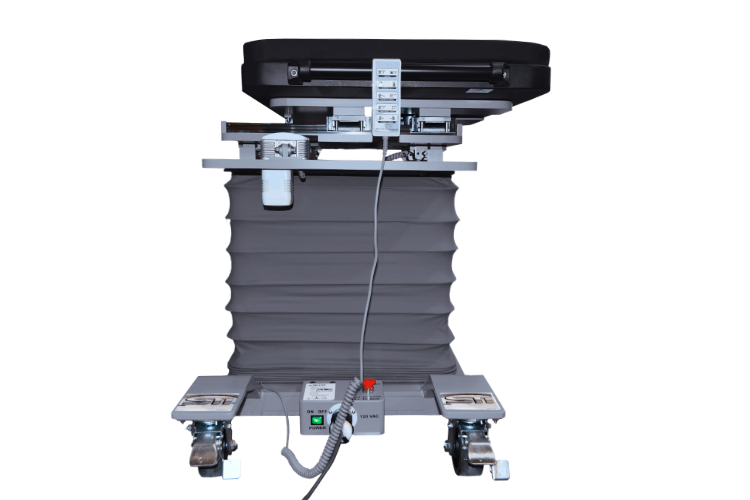

BT-5 offers Height (35″ to 43″) and also Lateral Tilt (+/- 17°), Trendelenburg (+/- 12°), longitudinal travel (16″, +/- 8″), and lateral travel (10″, +/- 5″) adjustments.

Note that all BT Series imaging tables with motorized movements require 120 VAC power for operation.
