DELWORKS LLI 17” x 42”

New

Call for Price

Improve workflow and decrease patient dose with DELWORKS LLI. The extensive image area of 17” x 42”(43 cm x 108 cm) enables full spine and long leg imaging with just one exposure. DELWORKS LLI eliminates potential stitching misalignments for improved confidence in diagnosis. Portability allows upright or supine image acquisition. Developed with highly sensitive AED (Automatic Exposure Detection) technology, DELWORKS LLI can be easily connected and synchronized with any x-ray generator.

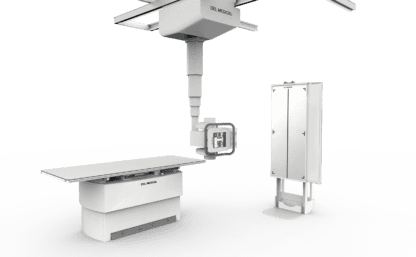

DELWORKS LLI can be easily repositioned for upright or supine imaging thanks to the freedom of wireless technology.
Equipped with the latest and fastest 802.11ac wi-fi connectivity, DELWORKS LLI communicates directly with DELWORKS
3.0. The DELWORKS LLI is fitted with two rechargeable lithium ion batteries that take 2-3 hours to fully charge. One full
charge yields 650 exposures and lasts 11 hours in standby mode. For wired use, the DELWORKS LLI comes with a 5m
magnetically connected cable.

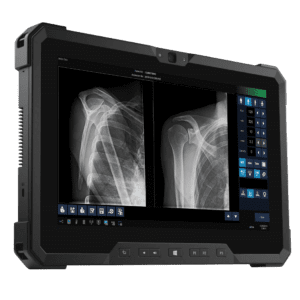

DELWORKS is a powerful image acquisition and processing software featuring a user-friendly interface that provides sophisticated and speedy medical imaging. DELWORKS makes the complex simple. Its advanced anatomical programming and image
processing algorithms help optimize technologist productivity. DELWORKS strives to minimize human error and unwanted repeat exams to give technologists the highest quality image at a lower dose, with every exposure

Categories: , , ,

Description

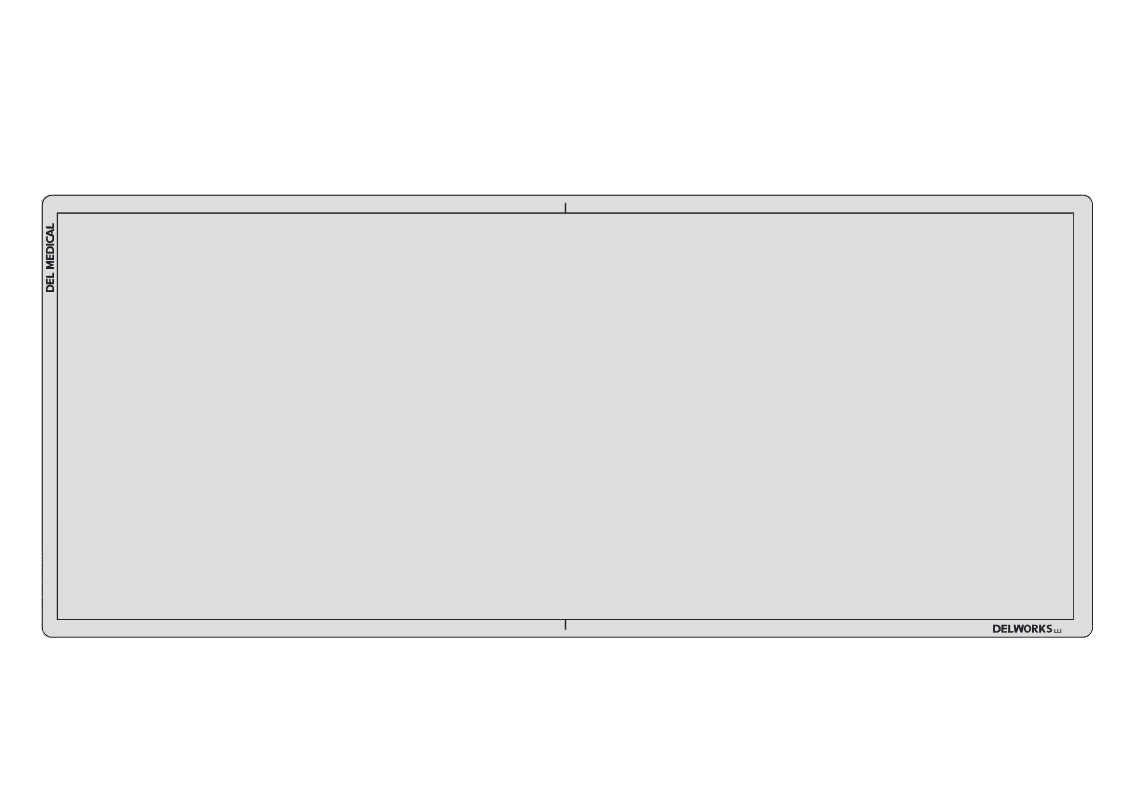

The DELWORKS LLI contains a DRZ+ scintillator coupled with an amorphous silicon detector. It has an active imaging area
of 17” × 42” that can accommodate a wide variety of patient sizes in both supine or standing positions. High resolution
images taken with or without a grid, need no stitching or subtraction and require minimal manipulation.

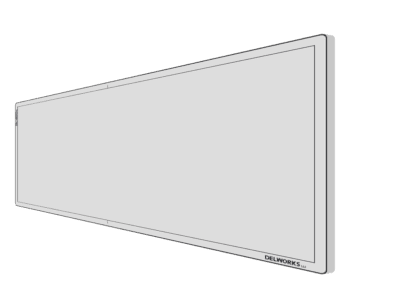

No other long-length detector is as portable as the DELWORKS LLI. Weighing only 11 kg (24 lbs) and
equipped with wireless capability, the DELWORKS LLI is lightweight and mobile. It can be easily moved
from a wall mount to a cart, or attached to a gurney.

Use of the DELWORKS LLI delivers substantially less dose as compared with standard
multi-exposure long bone or full spine imaging method while providing the highest geometric
accuracy available. The monolithic panel reduces unevenness and provides a perfect density
gradient with no overlap.
