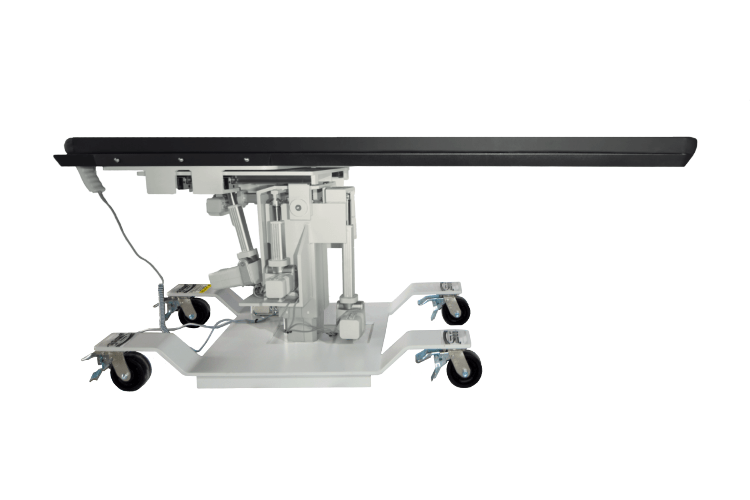

EconoMAX Series C-Arm Tables

Surgical Tables

The EconoMAX Series C-Arm Table is designed specifically for pain management professionals, offering a reliable and cost-effective solution for imaging needs. Its compact H-style base provides stability and easy maneuverability, ensuring smooth operation even in limited spaces.

Engineered to accommodate patients up to 500 lbs, regardless of positioning, the EconoMAX delivers both versatility and strength. This table balances affordability with exceptional performance and quality, making it an excellent investment for your practice.

Proudly manufactured in Massachusetts, the EconoMAX Series joins the MAX and Streamline tables to provide a range of dependable options for pain management imaging.

Category: C-Arm

Description

EconoMAX c-arm tables feature:

Carbon fiber, diving board style for easy C-arm access
Large patient capacity – high-end actuator motor supports 500-pound loads
An 84″ length can accommodate even the tallest of patients
A 24″ top eliminates the need for arm boards
Two-inch thick, patient comfort pad
Facial cut-out for prone procedures
Light weight – easy to physically move the table within the room or from room to room
Simple to use, high quality wheel locks
Extreme low position makes boarding patients fast, easy and safe

The EconoMAX series comes in five different models.

EconoMAX Series Movements

The EconoMAX Series c-arm tables come in five different models, with each offering a different selection of motorized adjustments:

EC-1 – Height adjustment (28″ to 38″)
EC-2 – Height (28″ to 38″) and also Lateral Tilt adjustments (tilt of +/- 17° ).
EC-3 – Height (28″ to 38″), and also Lateral Tilt (+/- 17° ), and Trendelenburg (+/- 13°) adjustments.
EC-4 – Height (30″ to 40″), and also Lateral Tilt (+/- 17°), Trendelenburg (+/- 13°), and longitudinal travel (10″, +/- 5″) adjustments.
EC-5 – Height (33.5″ to 43.5″), and also Lateral Tilt (+/- 17°), Trendelenburg (+/- 13°), longitudinal travel (10″, +/- 5″), and lateral travel (10″, +/- 5″) adjustments.

Remote controls are standard with the EconoMAX tables.

Height Buttons: support raising and lowering the table top as shown at right.

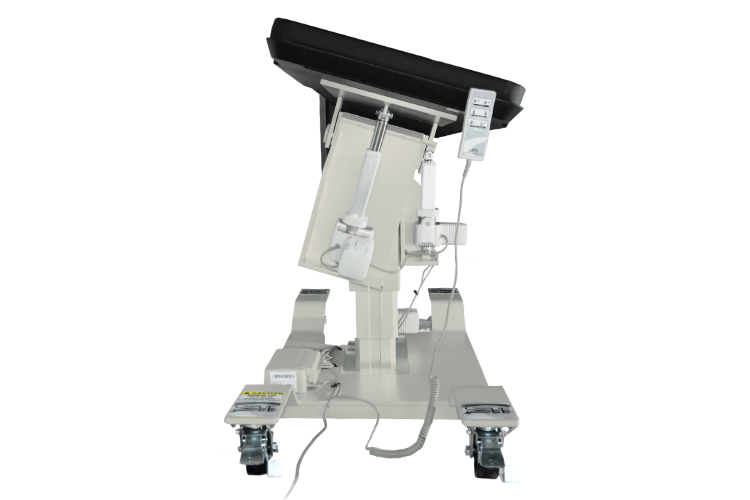

Lateral Tilt Buttons: control the lateral angle of inclination.

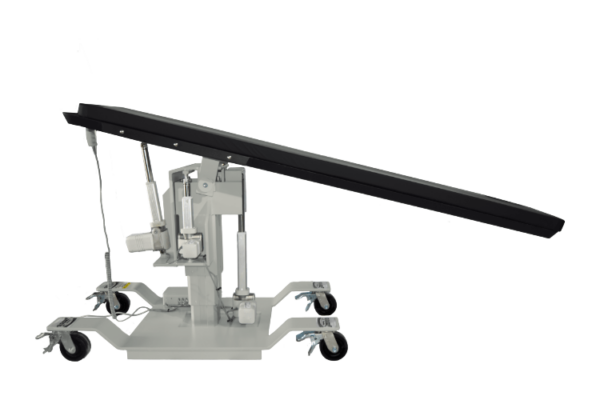

Trendelenburg buttons: control the angle of inclination of the head end.

Longitudinal travel buttons: move the table top in the longitudinal direction as depicted at right.

Lateral Travel Buttons: controls table movements in the lateral direction.

Note that all EconoMAX imaging tables with motorized movements require 120 VAC power for operation.
