JPI ExamVue 10×12 Wireless
New
Call for Price

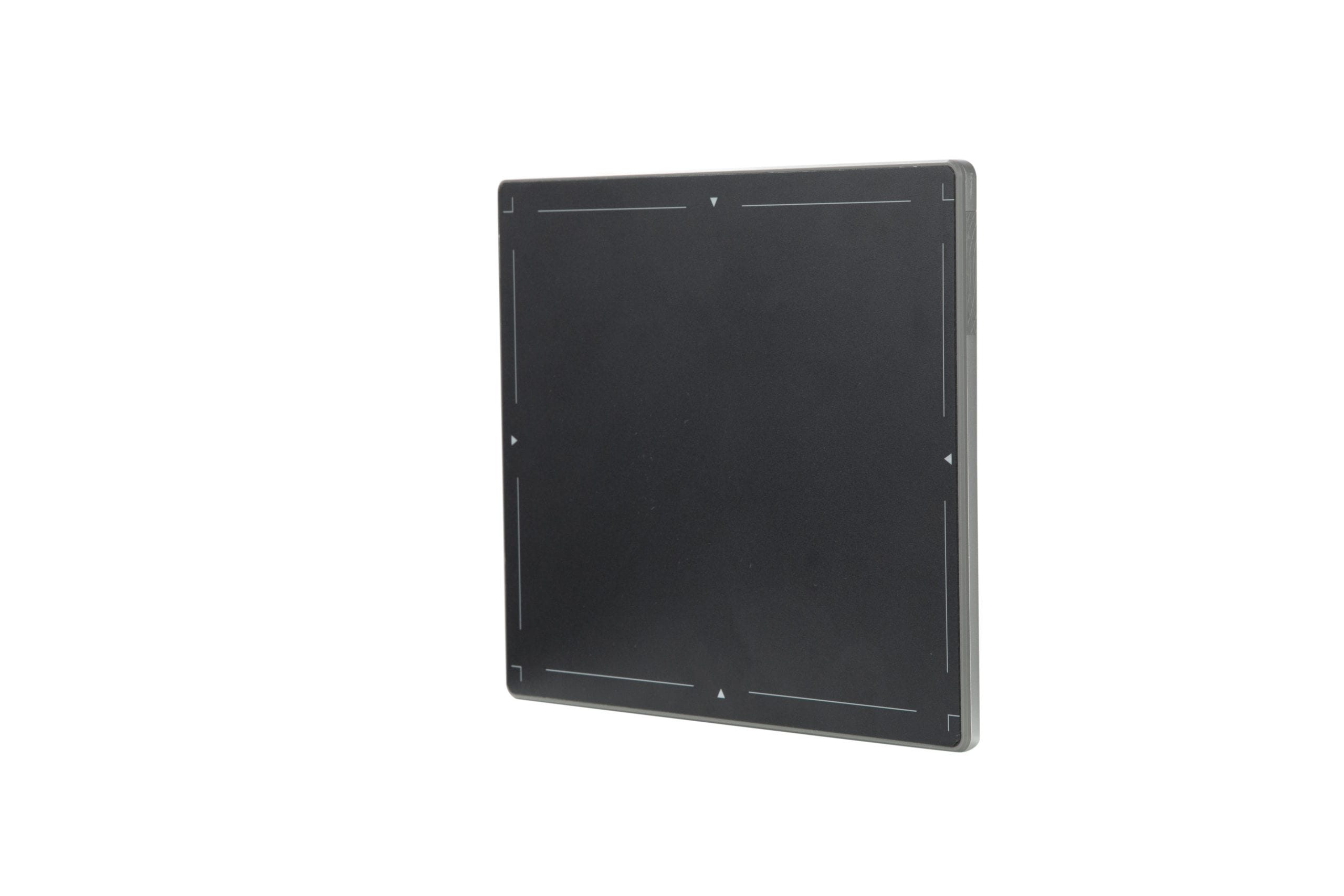

The 10” x 12″ ExamVue DR wireless cassette-sized detector powered by ExamVue is ideal for use as a portable unit in mobile and field applications. Lightweight, slim design with a rubber insulated frame and high strength aluminum-alloy case ensure safe and convenient operation and moves. Cases and weight bearing covers are available for added protection. F2AED® eliminates wiring to the generator.
Dual-band wireless acquisition and transfer of a full resolution image in ~4 seconds. Extra-long battery life. Standard Gigabit Ethernet port for optional wired operation.
At only 5lbs, this 10×12 is ideal for holding in a hand or positioning behind a patient. With a built in wireless, it can be connected directly to a laptop to minimize components for mobile applications or used with a router for enhanced range and speed of acquisition. With a CSI screen, the ExamVue DR 10×12 provide clear images at lower exposures than competitor panels relying on Gadolinium Oxide screens.
| Scintillator | Cesium-Iodide (Csl) |
|---|---|
| Active Area | 9.6” x 12” (307.2 x 244.32mm) |
| Pixel Array | 2560 x 2048 | Pixel Pitch: 120 micron (Nyquist Resolution 4.16 lp/mm) | Grayscale: 16 bits |
| Dimensions | 13.1” x 11.1” x .59” (333 x 282 x 15mm), Weight: 5 lbs. (2.3kg) • AED – Automatic Exposure Detection – Eliminates wiring to generator • Rubber insulated frame, high strength aluminum alloy back, carbon fiber front |
| Power Supply | (100-240 V AC), Battery |
| Communication Interface | Gigabit Ethernet 2.4/5GHz, 300Mbps, Standard Gigabit Ethernet port for optional wired operation and battery charging |
HOST PC Workstation (Specifications subject to change without notice) |
– Intel Pentium G3250 (Dual Core 3.2GHz 3MB w/HD Graphics) – Windows 7 Professional, 64 bit – 8GB Ram, 1600MHz – 1TB RAID 1 Hard Drive – 21.5″ Monitor |
| 21.5 MONITOR | Full HD Resolution 1920 x 1080 pixels, 2MP Keyboard and Mouse |
