FMT 18m

Del Medical

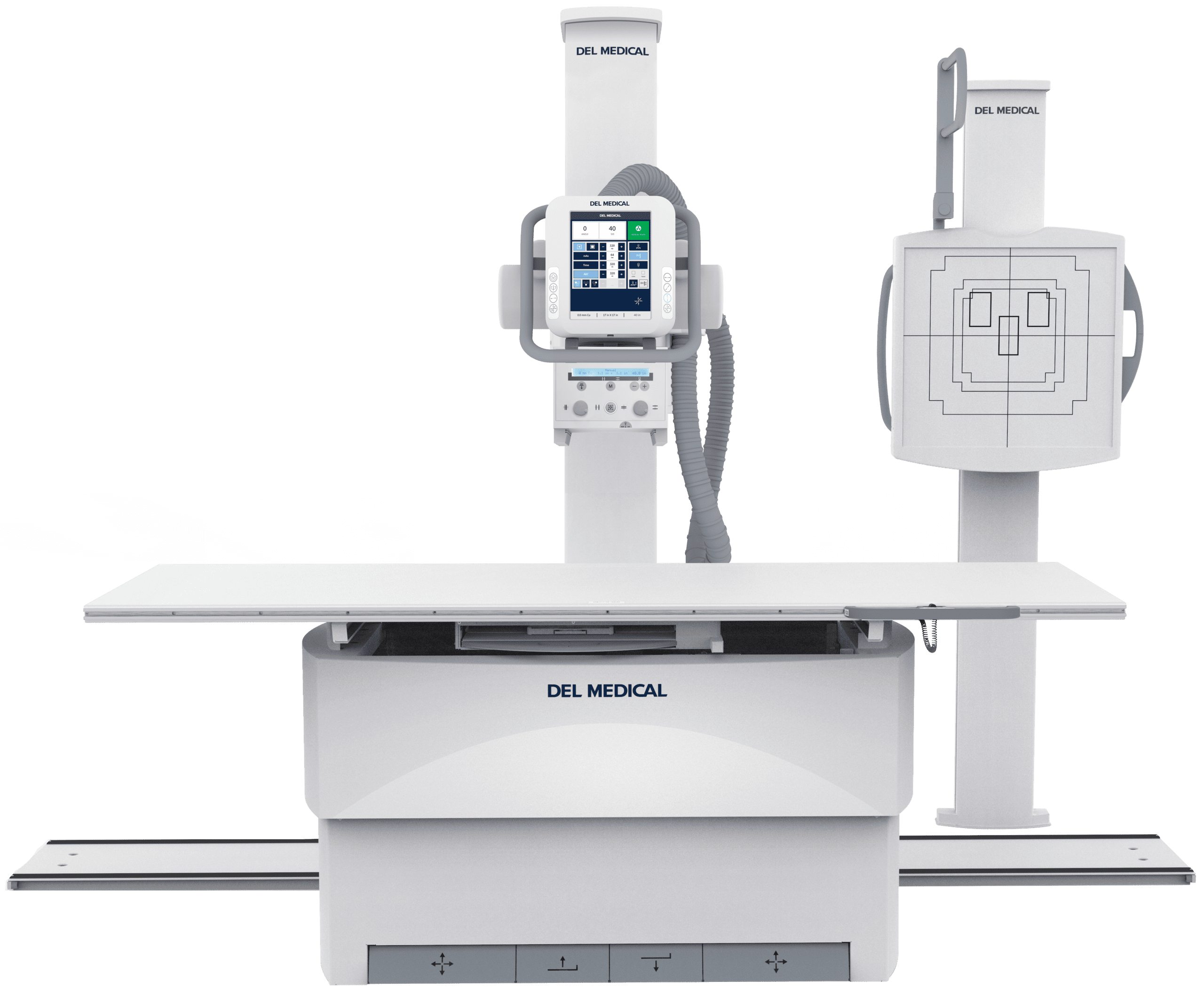

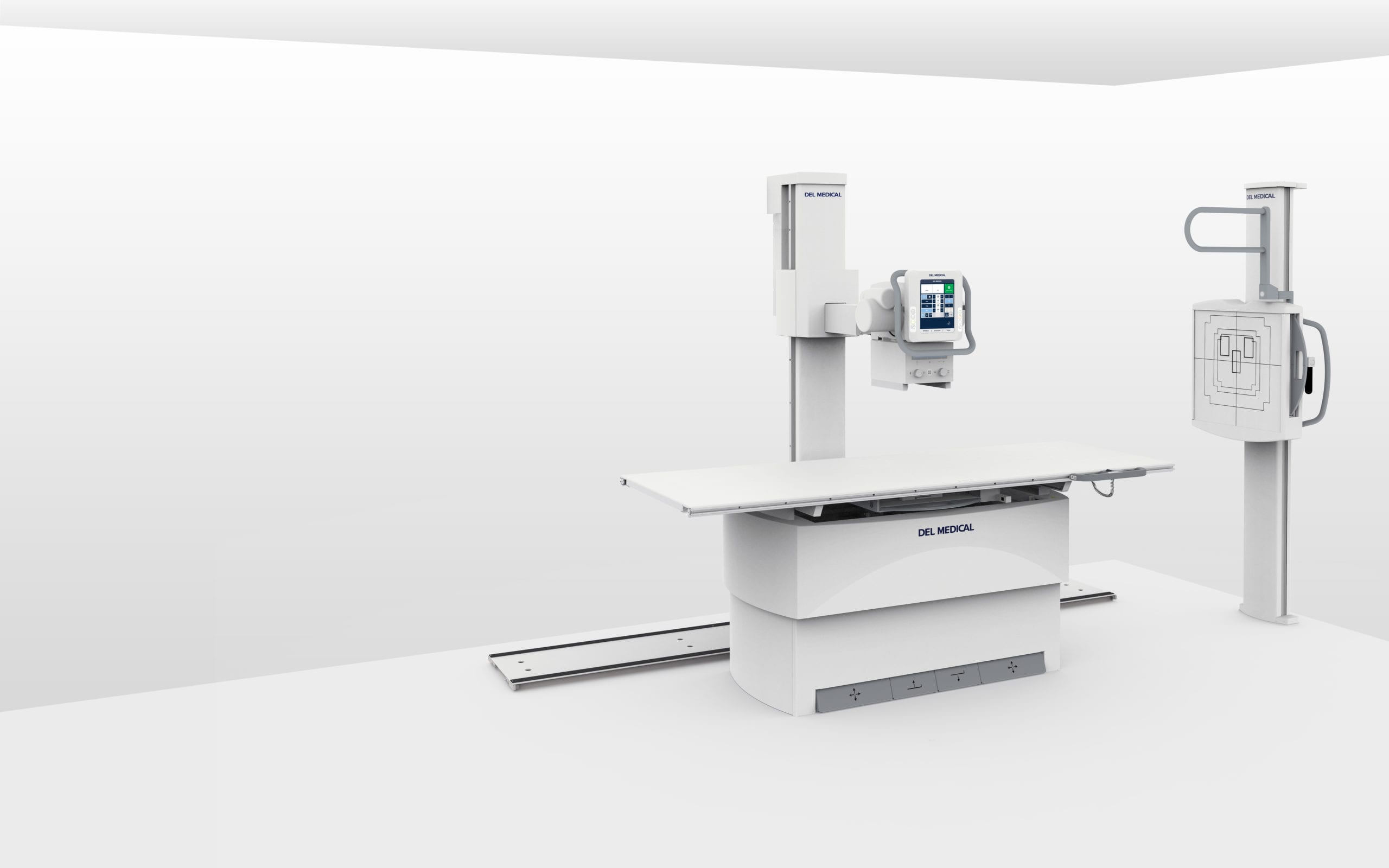

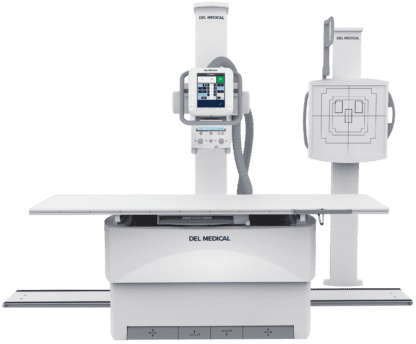

The FMT18M Digital Radiographic System was designed with features proven to optimize workflow, patient care and technologist productivity. The floor mounted configuration makes it ideal for smaller imaging environments requiring low ceiling installations, such as urgent care and orthopedic facilities. FMT18M systems are built to withstand medium to high volume throughput.

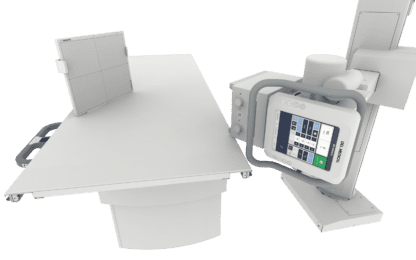

An advanced, 10.4″ technologist-friendly touchscreen console provides large text readouts and integrated operation of the tube stand. Ergonomically placed movement identification buttons provide optimal accuracy when setting up views. Take advantage of extensive longitudinal and vertical movements, as well as a 180° rotating tube column enabling positioning for cross-table lateral exams.

A conveniently placed all-lock release sensor is located just above the bottom section of the tube head handle. This sensor enables rapid manual positioning by allowing the user to simply grab the bottom handle to unlock the system and make swift readjustments.

Accelerates patient positioning and reduces radiation exposure by automatically selecting the proper field-of-view for each body part. This feature is available through the DelWorks DR acquisition software’s pre-programmed APR settings.

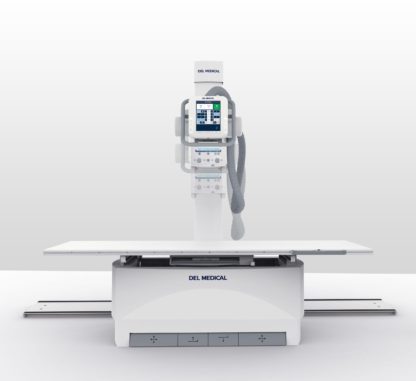

The durable EV800 elevating four-way float top table delivers outstanding safety and usability. Featuring an exclusive four-point lift system and exceptionally quiet motor-drive, its smooth, scratch resistant table top lowers to a height of just 22” to ensure stress-free patient transfers and adjustments. Offering a high patient weight capacity of up to 800lbs (363 kg), stable continuous movement is possible through conveniently placed recessed foot treadles and table-side controls, suitable for increasing technologist performance and satisfaction.

Categories: , Tag:


FMT18M Tube Stand:

Minimum ceiling height: Minimum 87″ (221 cm)

​Column height: 85.5″ (217 cm)

​Vertical travel: 64.5″ (164 cm) total

Floor to focal spot (standard mount):

Minimum 11″ (28 cm),

Maximum 75.5″ (192 cm)

Longitudinal travel: 94″ (239 cm)

​Rail longitudinal length: 120″ (305 cm)

Transverse travel: ​11″ (28 cm)

​Cable support capacity: 88 lbs. (40 kg)

​Tube stand weight: 950 lbs. (431 kg)

​Platform assembly weight: 125 lbs. (57 kg) net

​Column rotation: 180° where installation permits

​Tube rotation: ±180° detents for lateral decubitus projections

Base assembly  to rear wall: 8″ (20.5 cm)

EV800 Elevating Table

Patient load capacity: 800 lbs. (363 kg)

Table base length: 53″ (135 cm)

Table base width: 25″ (64 cm)

Total tabletop movement:

Longitudinal, 39.5″ (100.3 cm)

Transverse, ± 4.5″ (11.4 cm)

Variable height: 22.25″ (56.5 cm) to 34.25″ (87 cm)

Total bucky travel: 15.5″ (39.3 cm)

Tabletop length: 86.5″ (220 cm)

Weight: 563 lbs. (256 kg)

Power requirements: 120/230-240 VAC 50/60 Hz


– 78″ (198 cm) tabletop length

– 32″ (81 cm) tabletop width

– Lateral cassette holder

– Table-side patient handgrips

– Rotating cassette tray

VS300 Wall Stand:

Height (w/ vertical travel): 84″ (213.4 cm)

Depth: 13.4″ (34 cm)

Receptor width: 24.6″ (62.5 cm)

Receptor height: 26.5″ (67.3 cm)

Weight (with receptor):  200 lbs. (91 kg)

Power requirements: 24 VDC, 1.25 max. momentary amps


– Floor mount kit for freestanding version
– Wall mount bracket extension kit

– Rotating cassette tray
