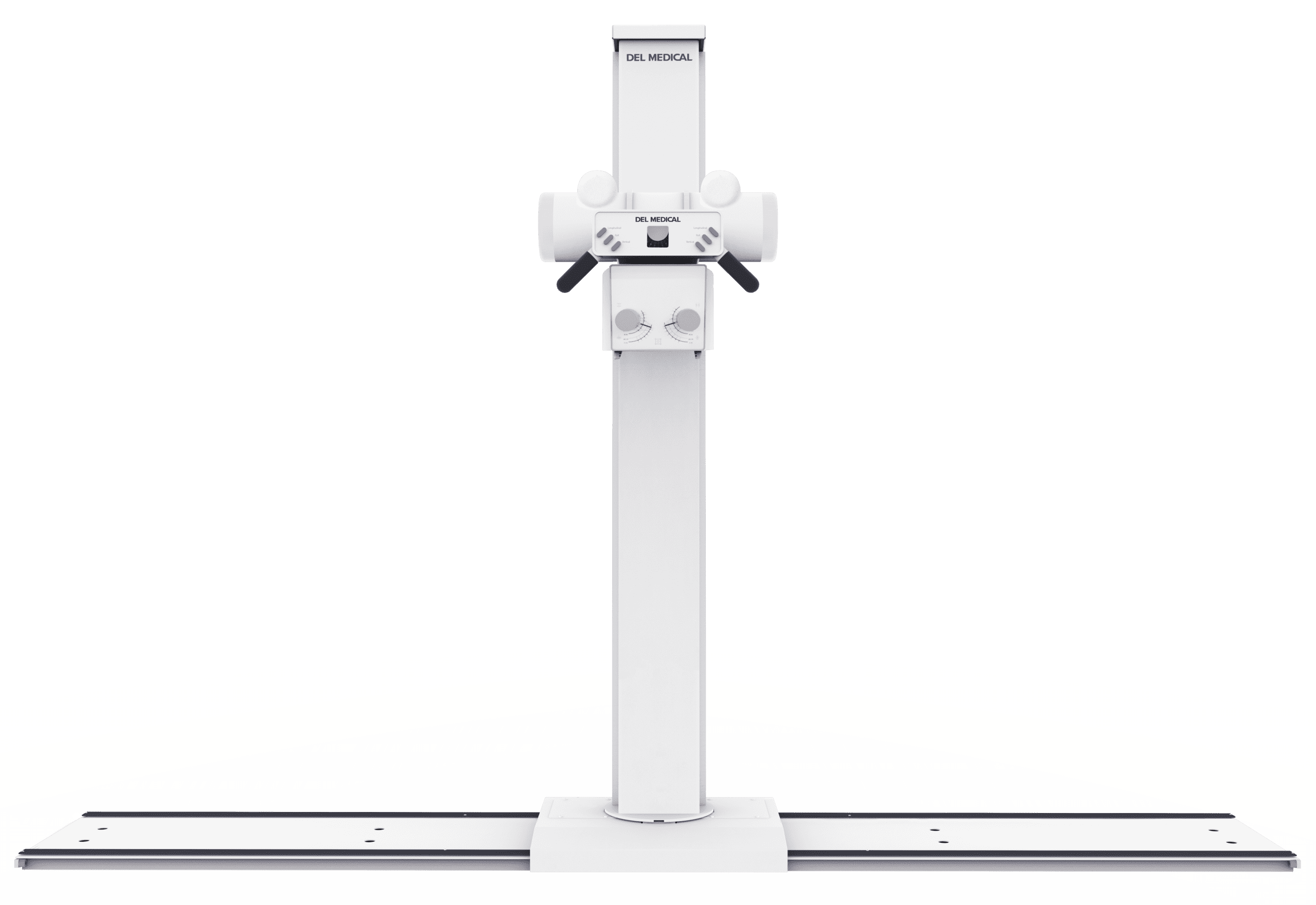

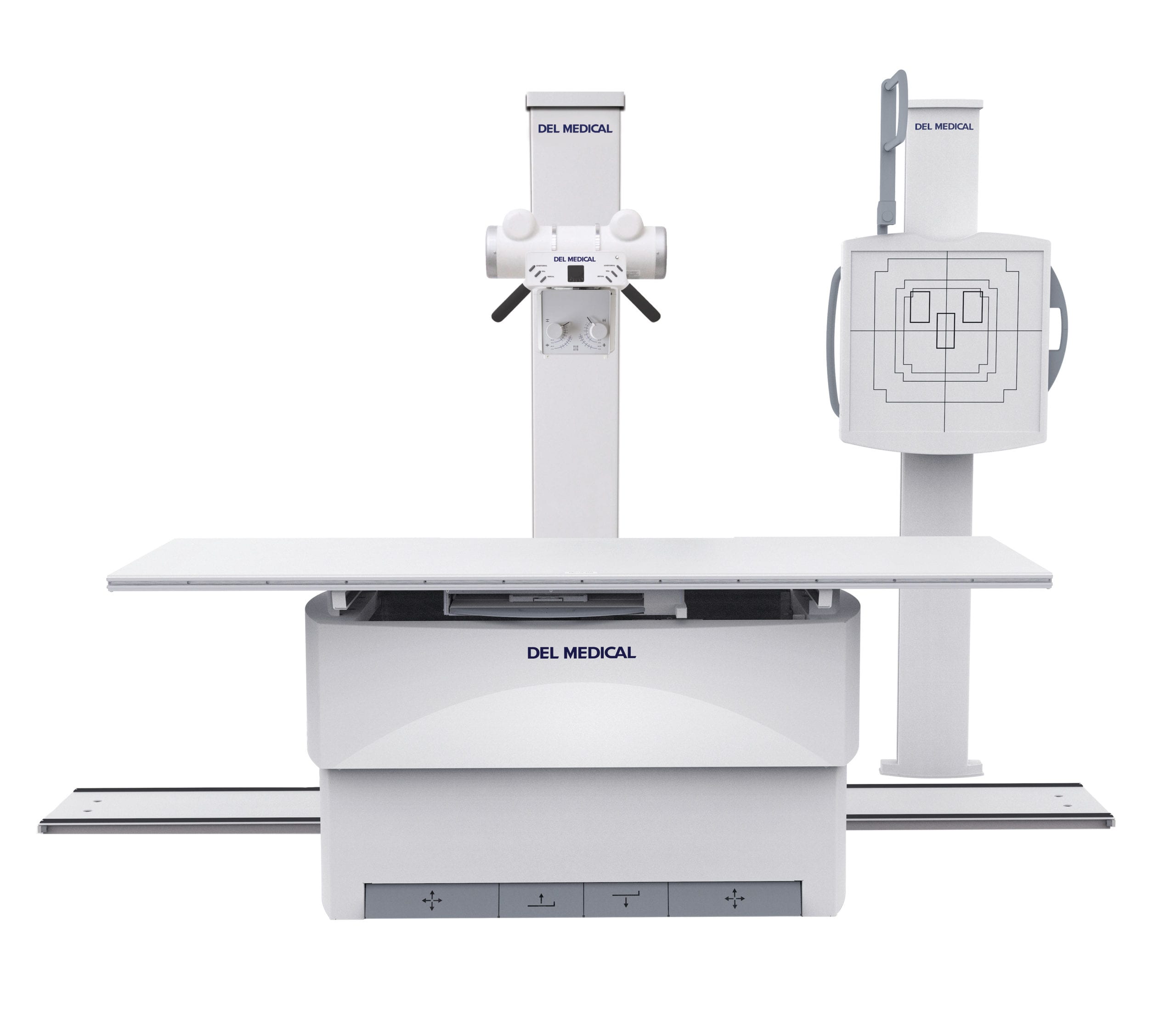

The FMT System offers an economical, compact design ideal for hospital radiology departments, medical imaging centers and orthopedic facilities looking to maximize space and avoid costly room modifications. A secure 10 ft floor mounted rail allows for effortless longitudinal travel and quick positioning. The tube stand itself only requires a ceiling height of 87 inches, making it one of the lowest ceiling height requirements in the industry.

The FMT tube stand is easy to use and features an analog angulation display, conveniently positioned finger-tip control buttons, and powerful magnetic locks to ensure steady, accurate tube head positioning. In addition, it only requires a ceiling height of 87 inches, making it one of the lowest ceiling height requirements in the industry.

The RT100 table features a 700 lbs. patient weight capacity and a stain resistant floating table top which glides freely on a precision roller bearing system. Float top movements are safely controlled by heavy-duty electric locks, activated by a conveniently placed foot treadle release. The 17” x 17” standard bucky tray can accommodate any cassette sized detector with ease. Its all steel structure and welded base provides maximum strength and reliability.In addition, the RT100’s pedestal base can be used to store generator electronics making it a great space saver.

The ultra compact VS100 upright is powered by an electric lock release handle and dual counterweight cables for added patient and user safety. Its expansive vertical travel of 58” (148 cm) enables a complete range of exams from skull to weight bearing knee and ankle exams.

The easy-to-use rotating tray enables manual rotation of the DR detector inside the RT100 table. Stable one-handed operation supports fast portrait-to landscape positioning without ever removing the detector from the tray. Fully extended steel slides activate locking mechanisms to assure detector protection when loading and unloading. Designed to accommodate a wide array of ISO 14 x 17” cassette-sized detectors.

Categories: , Tag:


FMT Tube Stand:

Base assembly to rear wall: 8″ (20.5 cm)

Tube rotation: ±180° detents for lateral decubitus projections

Column rotation: 180° where installation permits

Platform assembly weight: 125 lbs. (57 kg) net

Tube stand weight: 460 lbs. (209 kg)

Rail longitudinal length: 120″ (305 cm)

Transverse travel: 11″ (28 cm)

Cable support capacity: 88 lbs. (40 kg)

Longitudinal travel: 94″ (239 cm)

Floor to focal spot (standard mount):

Minimum 11″ (28 cm),

Maximum 75.5″ (192 cm)

Column height: 85.5″ (217 cm)

Minimum ceiling height: Minimum 87″ (221 cm)

Vertical travel: 64.5″ (164 cm) total

RT100 Radiographic Table:
Patient load capacity: 700 lbs. (317 kg)

Table base length: 43″ (109 cm)

​Table base width: 29″ (74 cm)

​Table top length: 86.6″ (220 cm)

​Table top width: 32″ (81 cm)

​Table top height: 33″ (84 cm)

​Longitudinal travel: 54.5″ (138 cm)

​Transverse travel: 9.8″ (25 cm)

​Table top to film distance: 3.3″ (8 cm)

​Bucky travel: Longitudinal 11.4″ (29 cm) Allows for 65″ (165 cm) of complete longitudinal radiographic coverage

​Weight: 387 lbs. (176 kg)

​Power requirements: 120 VAC or 230-240 VAC


– 78″ (198 cm) table top length

– 32″ (81 cm) table top width

– Lateral cassette holder

– Table-side patient handgrips

– Rotating cassette tray

– Compression band

VS100 Wall Stand:
Height: 86″ (220.4 cm)

Receptor height: 23.4″ (59.4 cm)

​Vertical travel range: 58.4″ (148.3 cm)

​Width ( with receptor): 23.3″ (59 cm)

​Depth ( with receptor): 13″ (33 cm)

​Max. focal point spot height 72.4″ (183.8 cm)

​Min. focal spot height: 14″ (35.6 cm)

​Weight: 258 lbs. (117 kg)

​Power requirements: 24 VDC
