GALAXY TTET400

New

Call for Price

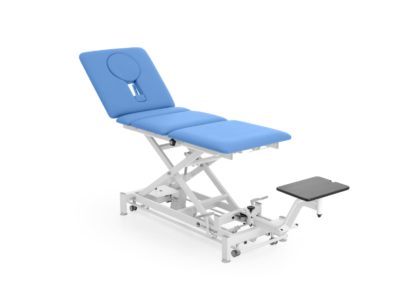

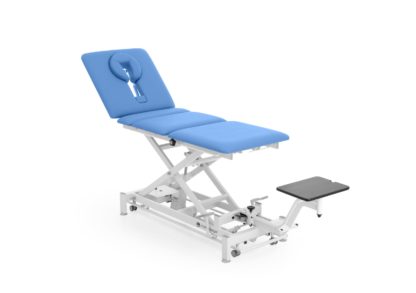

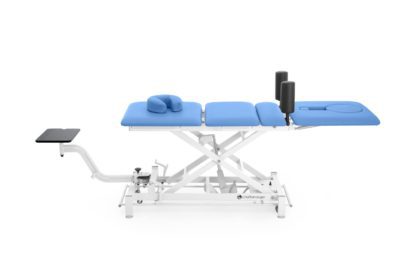

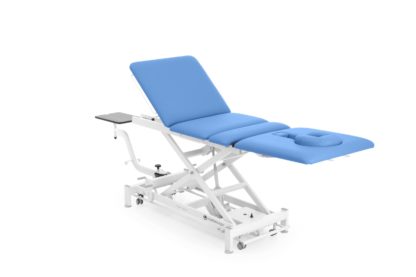

The Galaxy TTET400 is a multifunctional 4-section traction table which, in conjunction with a traction unit, aids in efficient spinal traction treatment. The TTET400’s roller-mounted surface helps prevent friction below the hips and legs, aiding in full traction force during vertebral treatment. In addition, because the rolling sections can be locked in place, this variable-height traction table can also serve as an additional treatment couch.

  • A Scissor frame with four feet and four multidirectional, retractable wheels for easy transport
  • Provides maximum patient comfort in prone and supine positions to aid both manual therapy and traction therapy

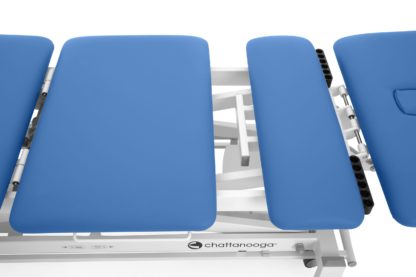

  • Roller-mounted surface helps prevent friction below the hips and legs
  • Repositional head /back section elevates to 85°
  • Gas spring assists on friction-free moveable sections for easy positioning
  • HalloTronicTM+ System enables electric high/low height adjustment from 22 to 40 cm with capacity up to 500 LBs
  • Optional Axilia post package for added stability for your patient. Must be added at the time of order.
Categories: ,

Description

Mains Power: 120 V – 50/60 Hz
Current: Max 2A with 120V
Dimensions:
Total* 86.6 x 33.5 x 31.5 inches
Head section 28 inches
Middle section 8 inches
Leg section 47 inches
Width 25 inches
Adjustment:
Angle Inclination Head Section -30° to +80°
Displacement Leg Section 4 inches
Height min: 22 inches

max: 40 inches
Dynamic Lifting capacity: 500 LBs
Maximum workload: 605 LBs
Patient Weight: 286 LBs
Electrical Safety Class: Class I, Type B
Safety Tests: CE, Class I Rule 12
Shipping Weight (lbs): 330 LBs
Shipping Dimensions (LxWxH) inches: 86.6×33.5×31.5 inches
Table Weight: 274 LBs
* Dimensions are listed as L x W x H
