OTC 12- Overhead tube crane

New

Call for Price

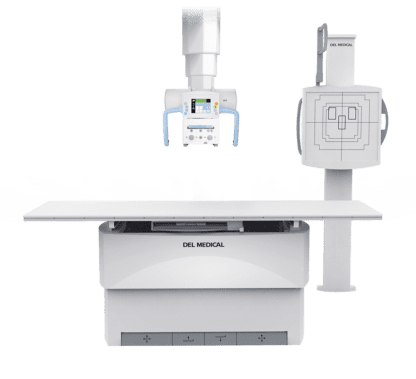

​The OTC12 tube crane highlights a color touch display providing seamless system integration by displaying tube angulation, SID values, and generator control options. Color-coded movement identification buttons provide optimal precision when setting up views. Peaceful, effortless movements are controlled by an electromagnetic braking system enabling fast and secure readjustments of the tube head. Its five-tier telescoping column delivers exceptional vertical movement of 71” (180 cm), capable of performing complete head-to-toe radiographic procedures including upright weight bearing and recumbent table top exams.



Categories: ,

Description

OTC12 Tube Crane:

​Vertical telescopic travel range: 70.8″ (180 cm) with minimum 32.7″ (83 cm) focal spot floor distance with a 9′ ceiling height

​Longitudinal travel range: Standard 14′ rail included, 136.2″ min. (346 cm) With optional rail extensions: 219.9″ max (558.5 cm)

​Transverse travel range: Standard 10′ Bridge with 9.8′ (0.3 cm) transverse carriage: 86.6″ min. (220 cm) With 13′ bridge & 13.1′ (0.4 cm) transverse carriage: 139.7″ max. (355 cm)

​Longitudinal detent positions: Configurable during installation

​Tube rotation range (horizontal axis): -120°, +120°, Detent positions at -90°, 0°, +90°

​Tube rotation range (vertical axis):  -182°, +154°, Detent positions at -180°, -90°, 0°, +90°

​Weight: Approximately 831 lbs. (377 kg) with tube & collimator

​Power requirements:  110/240 VAC 50/60 Hz, 700 VA

​

​

​
