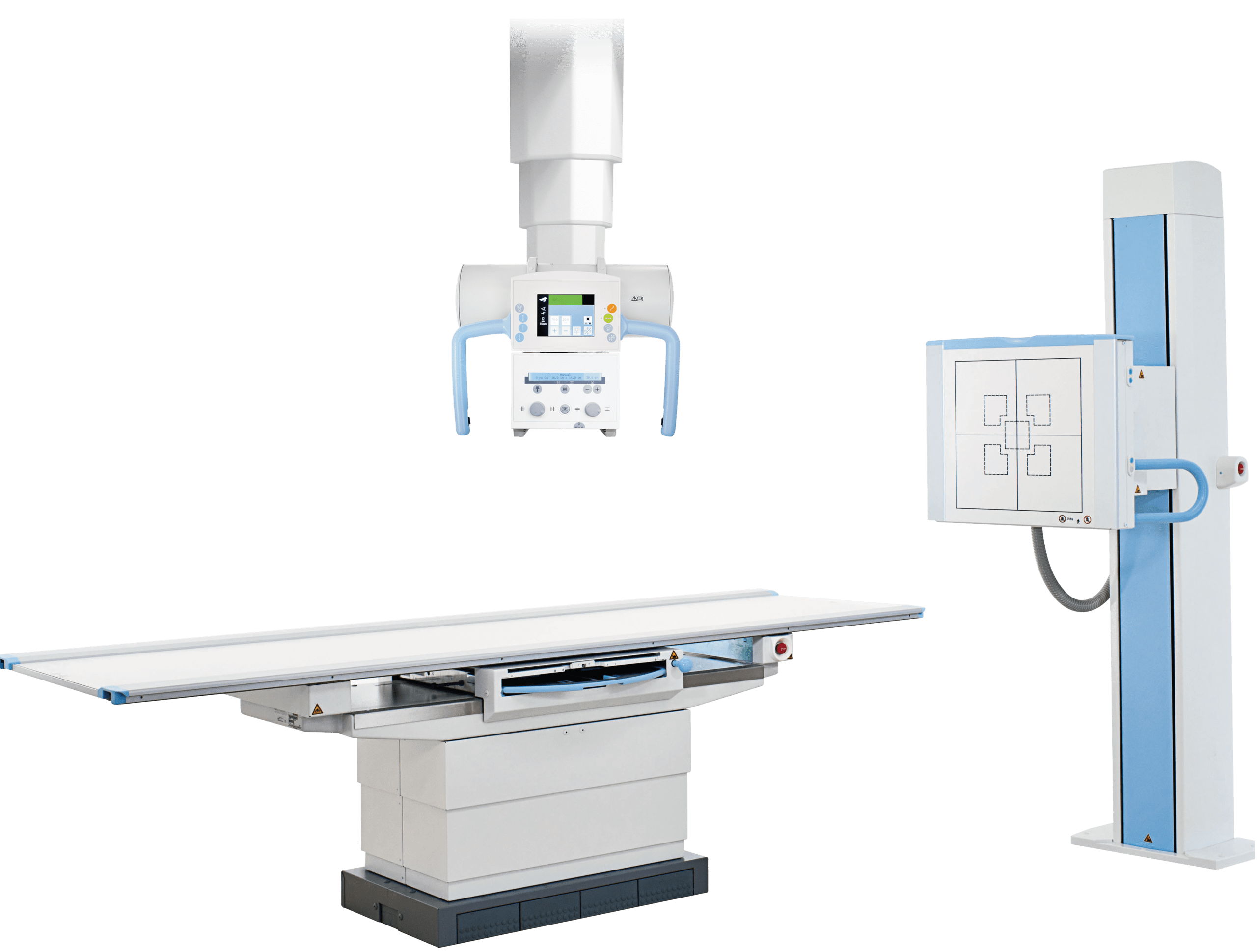

The OTC12S Radiographic System delivers enhanced patient comfort and optimized workflow. Precisely designed to withstand high volume throughput in hospital radiology departments, medical imaging centers and large orthopedic facilities with the need to perform a broad range of radiographic studies.

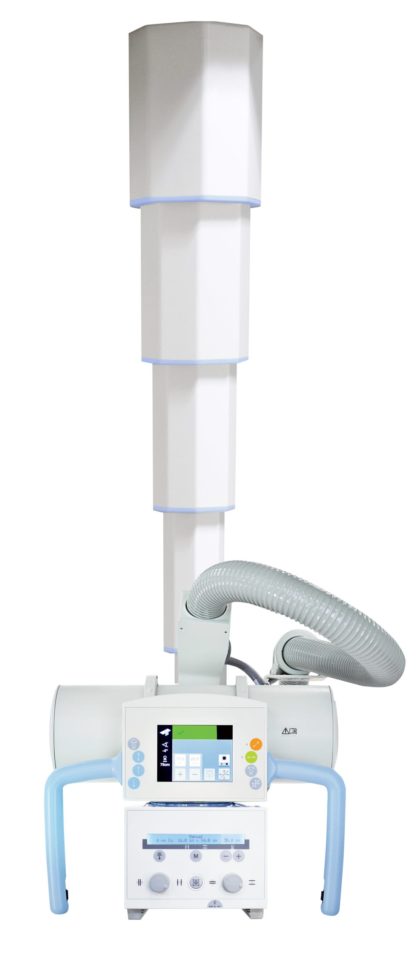

The OTC12 tube crane highlights a color touch display which displays tube angulation and SID values. Color-coded movement identification buttons provide optimal precision when setting up views. Peaceful, effortless movements are controlled by an electromagnetic braking system enabling fast and secure readjustments of the tube head. Its five-tier telescoping column delivers exceptional vertical movement of 71” (180 cm), capable of performing complete head-to-toe radiographic procedures including upright weight bearing and recumbent table top exams.

The tilting WS04 wall stand accommodates nearly all radiographic procedures, including upright and seated applications. Technologists can expose difficult views by utilizing its tilting functionality, +90° to -20°. Its receptor effectively lowers to the floor and allows exposures of patients up to 6ft.-1in. (190 cm). All movements are precisely counter balanced to permit smooth vertical travel.
Categories: , Tag:

Description

OTC12 Tube Crane:

Vertical telescopic travel range:

70.8″ (180 cm) with minimum 32.7″ (83 cm) focal spot floor distance with a 9′ ceiling height

Longitudinal travel range: Standard 14′ rail included, 136.2″ min. (346 cm) With optional rail extensions: 219.9″ max (558.5 cm)

Transverse travel range: Standard 10′ Bridge with 9.8′ (0.3 cm) transverse carriage: 86.6″ min. (220 cm) With 13′ bridge & 13.1′ (0.4 cm) transverse carriage: 139.7″ max. (355 cm)

​Longitudinal detent positions: Configurable during installation

Tube rotation range (horizontal axis): -120°, +120°, Detent positions at -90°, 0°, +90°

Tube rotation range (vertical axis): -182°, +154°, Detent positions at -180°, -90°, 0°, +90°

Weight: Approximately 831 lbs. (377 kg) with tube & collimator

Power requirements: 110/240 VAC 50/60 Hz, 700 VA

RAD TC Elevating Table:

Patient load capacity: 563 lbs. (256 kg)

Table base length: 32.3″ (82 cm)

Table top length: 94.5″ (240 cm)

Table top width: 31.5″ (80 cm)

Table top movement: Longitudinal, ± 18.9″ (48 cm) Transverse, ± 5.5″ (14 cm)

WS04 Tilting Wall Stand:

Receptor tilt range: +90°/ 20°

Height: 83″ (211 cm)

Depth at 90° tilt: 36.7″ (93.3 cm)

Width (with handles): 30″ (76 cm)
