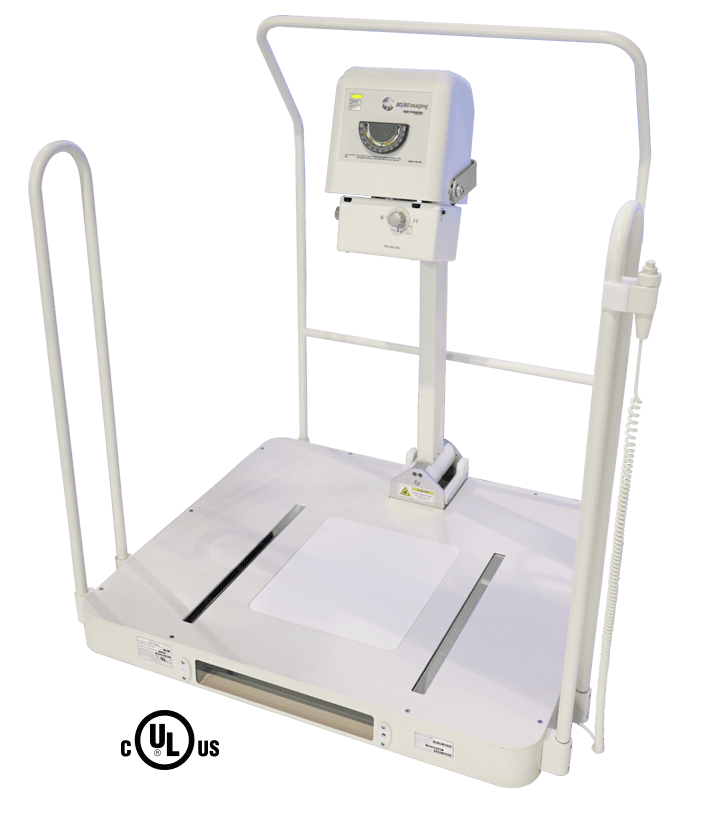

PXS-710D High Frequency

20/20 imaging

X-Ray Units

Custom built x-ray units for your practice needs

The PXS-710 was designed for Superior imaging performance and convenient patient positioning for the Podiatry professional, as well as for Orthopedic Foot and Ankle Radiographic applications. Built in the USA.

The PXS-710 incorporates a High Frequency Generator to provide maximum mR/mAs, and has a microprocessor output of 70kV at 10mA. With its 0.5mm focal spot x-ray tube, and high output generator, the model PXS-710 provides exceptional Image Resolution and Faster Exposure Times Foot and Ankle Radiography. FDA Approved.

This x-ray unit can be used with conventional film screen technology*, or as a part of a complete Podiatry CR/DR-system. *Upgrade later to a 2020 CR or DR system!



Categories: , Tag:

Description

FEATURES

      • UL & CUL listed
      • High Frequency Output

    enhanced image quality

    • 1/2 radiation dose, twice as efficient
    • 0.5mm Focal Spot
    • extends x-ray tube life
      • Qualifies for ADA TAX Credit
      • Versatile sensor positioning

    improve patient throughput

      • 3.5in. low base

    improved step height for patient use

      • Patient support rail system

    allows access from side or front

  • Tilt Head System for AP/DP view

SPECIFICATIONS

    • 29” SID AP/Oblique view
    • 36” SID Lateral view
    • “HF” series proprietary tube
    • Low voltage exposure switch
...
High Frequency Tube Head
  • 0.5mm Focal Spot
  • improves signal to noise ratio
  • lightweight design
  • easier to maneuver
...
Durable Base Board
  • Maximum weight bearing
...
Optional Film/CR Cassette Adapter
  • use with your current film cassettes
  • upgrade later to CR/DR!
...
Cable Integration
  • Serial, RJ45, USB, Power
  • Adaptable to additional DR components
...
Cable Management (DR)
  • DR Panel cables integrated inside of base
  • optional remote control extension-less wires!
...
Lateral View (DR)
  • 90 degree for Laterally taken views

PXS-710D HF – Dual Panel Configuration

Advantages of the Dual-Panel Option
Never touch the detector
  • No lifting, dropping, no damage
  • No cable/wire interference
Reduce Physical Stress on Staff
  • No moving the detector back & forth
System is NEVER DOWN!**
  • No need for loaner replacement
  • Practice can continue to operate with one detector if one goes down
