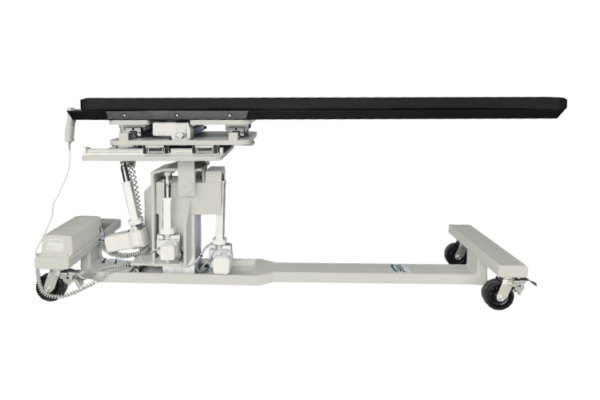

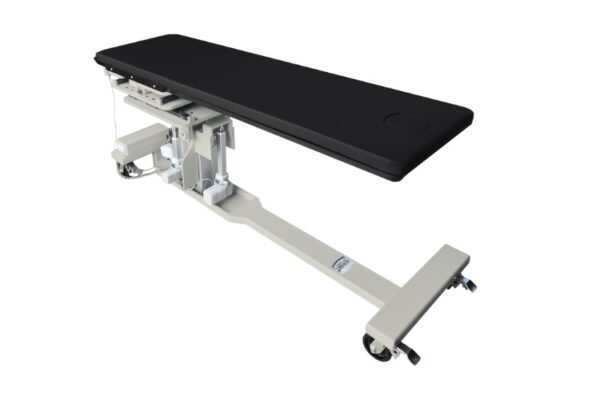

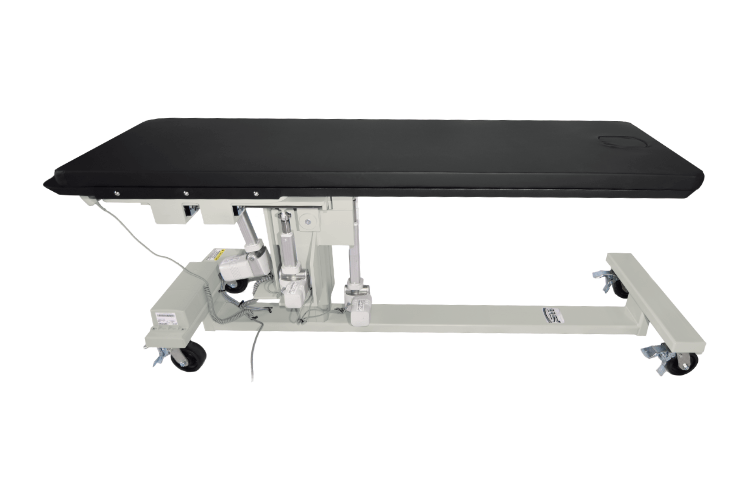

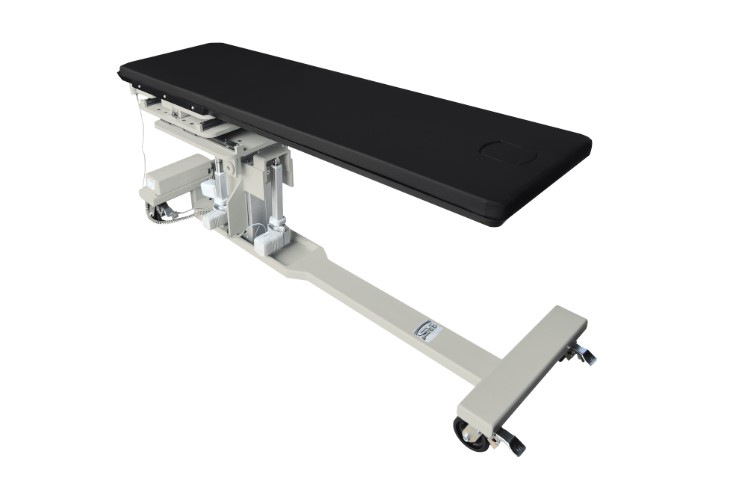

Streamline Series C-Arm Table
Surgical TablesIntroducing the Streamline Series C-Arm Table, tailored for the specific needs of pain management professionals. This lightweight, highly maneuverable imaging table is perfect for spaces where equipment placement is challenging. Its low-profile, I-style base ensures stability, while its robust design supports patients up to 500 lbs.
The Streamline Series offers exceptional quality and performance at an affordable price, delivering superior value without compromising reliability. Proudly manufactured in Massachusetts, this table is a testament to precision and durability.
With the Streamline Series, along with the MAX and EconoMAX tables, your practice has versatile, dependable solutions for pain management imaging needs.
Description
Streamline imaging tables feature:
- Carbon fiber, diving board style for easy C-arm access
- Large patient capacity – high-end actuator motor supports 500-pound loads
- An 84″ length can accommodate even the tallest of patients
- A 24″ top eliminates the need for arm boards
- Two-inch thick, high quality patient comfort pad
- Facial cut-out for prone procedures
- Light weight – easy to physically move the table within the room or from room to room
- Simple to use, high quality wheel locks
- Extreme low position makes boarding patients fast, easy and safe
The Streamline series comes in five different models
Streamline Series Movements
The Streamline Series c-arm tables come in five different models, with each offering a different selection of motorized adjustments:
- SL-1 – Height adjustment (28″ to 38″)
- SL-2 – Height (28″ to 38″) and also Lateral Tilt adjustments (tilt of +/- 17° )
- SL-3 – Height (28″ to 38″), and also Lateral Tilt (+/- 17° ), and Trendelenburg (+/- 13°) adjustments
- SL-4 – Height (30″ to 40″), and also Lateral Tilt (+/- 17°), Trendelenburg (+/- 13°), and longitudinal travel (10″, +/- 5″) adjustments
- SL-5 – Height (33.5″ to 43.5″), and also Lateral Tilt (+/- 17°), Trendelenburg (+/- 13°), longitudinal travel (10″, +/- 5″), and lateral travel (10″, +/- 5″) adjustments
Remote controls are standard with the Streamline tables.
Height Buttons: support raising and lowering the table top as shown at right.

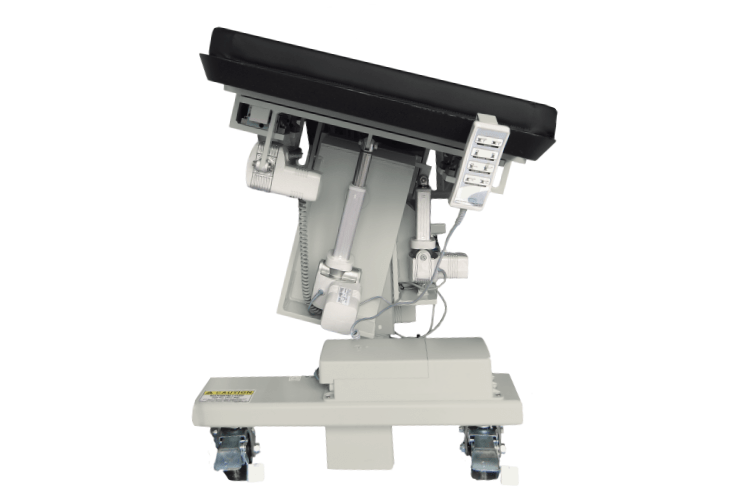

Lateral Tilt Buttons: control the lateral angle of inclination.

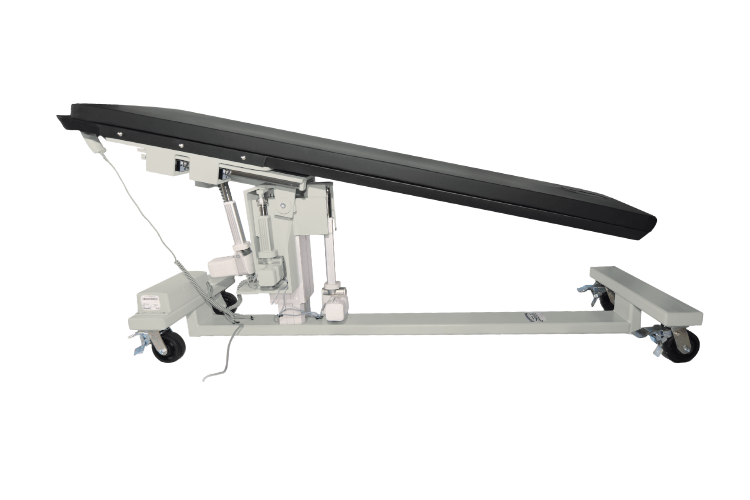

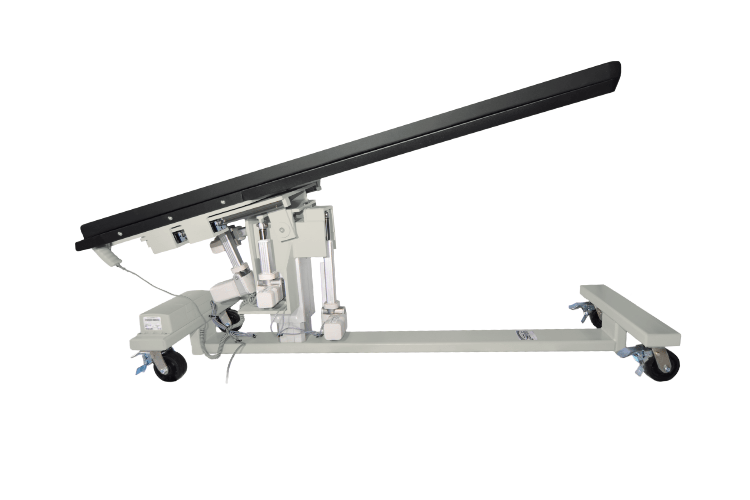

Trendelenburg buttons: control the angle of inclination of the head end.
Longitudinal travel buttons: move the table top in the longitudinal direction as depicted at right.
Lateral Travel Buttons: controls table movements in the lateral direction.
Note that all Streamline Series imaging tables with motorized movements require 120 VAC power for operation.
