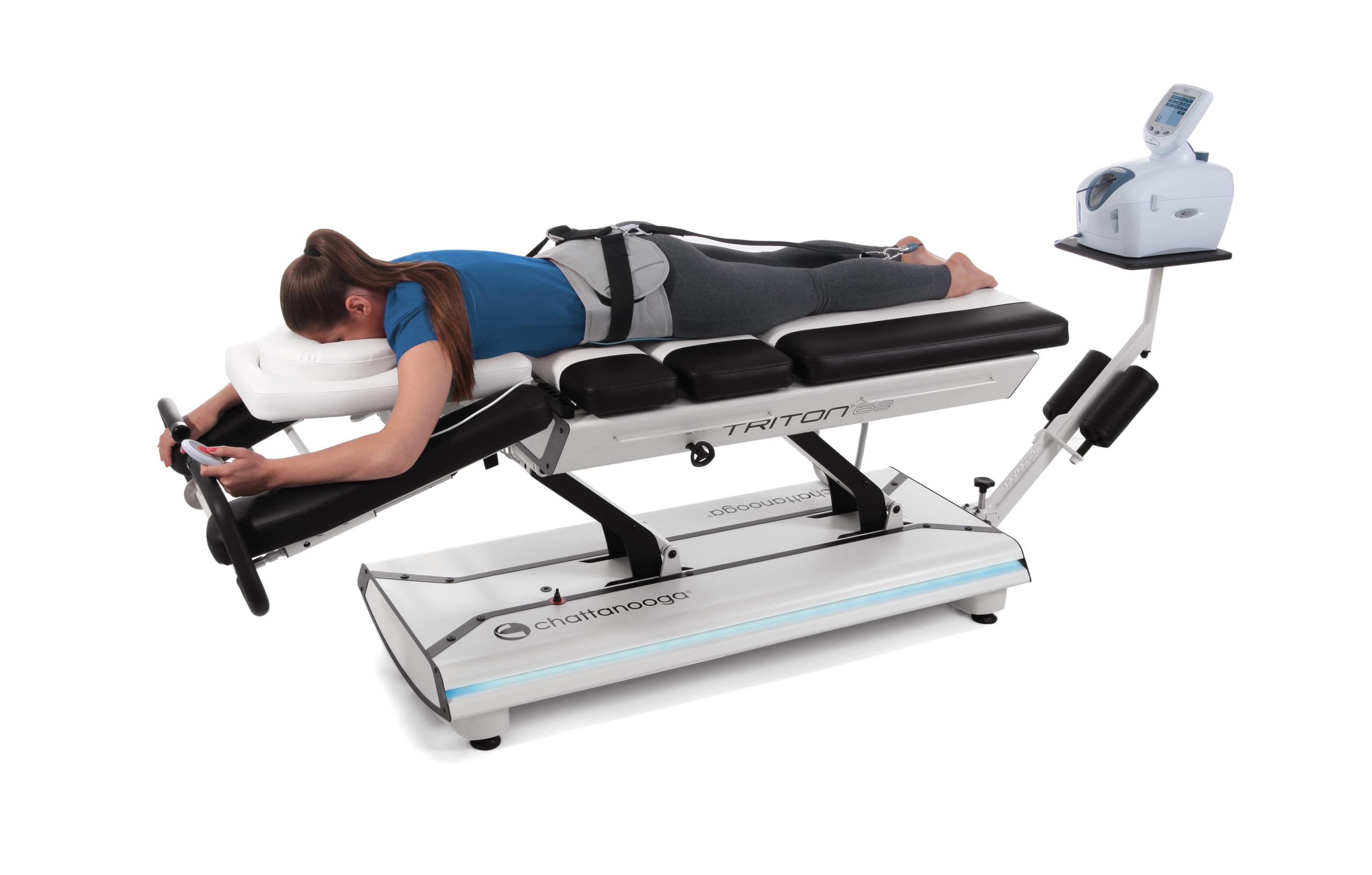

Triton 6E Traction Table Electronic

chattanooga

In modern medicine, spinal distraction has been utilized as a treatment option to help relieve peripheral radiation/sciatica and pain associated with various spine injuries and pathologies.

With more than 40 years of experience in the service of clinicians worldwide, Chattanooga introduces its next generation of spinal distraction treatment systems. Consisting of a three-tier portfolio, our latest range of traction tables includes the highly-functional Galaxy traction line, the mid-range Triton 6M, and the optimum product in the series, the Triton 6E.

Sporting a selection of sophisticated features, the Triton 6E employs modern technology to help put the clinicians in total control with the touch of a button. Fully electric and highly adjustable, when combined with one of our Triton traction units, this premium table helps provide the best possible support for practitioners looking to push their traction treatment to the next level in innovation.

Category: Tag:

Description

Mains Power: 120 V – 50/60 Hz
Current: Max 2A with 120V
Dimensions:
Total* 90.5 x 37 x 31 inches
Head / Back section 28 inches
Middle section 8.6 inches
Pelvic section 10 inches
Leg section 30 inches
Width 27.5 inches
Adjustment:
Height 19 inches

37 inches
Angle Inclination Head Section -30° to + 40°

Pelvic Section 0° to 20°

Leg Section 0° to 45°
Displacement Leg Section 4inches
Heating Temperatures: 95° & 100.4° F
LED Lighting: 7 Colors & FADE option
Dynamic lifting capacity: 440 LBs
Maximum workload: 605 LBs
Weight: 440 LBs
Electrical Safety Class: Class I, Type B
Safety Tests: CE, Class I rule 12
Table Weight: 494 LBs
Average Shipping Weight: 550 LBs
Shipment Dimensions: 92.5 x 37.4 x 31.5 inches
* Dimensions are listed as L x W x H



  • One of the most advanced electric traction tables, powered by modern actuators, assist in friction-free movement of head, pelvic, chest and leg sections
  • Ideally positioned hand remote control allows for easy access around the table
  • 6-section treatment table to provide maximum patient comfort in prone and supine positions for manual and traction therapy
  • Pelvic tilt section can be adjusted from 0° to 20° to provide flexion of lumbar spine and to help address pelvic asymmetry
  • Head piece can be repositioned from -30° to +40° to allow easy access to thoracic and cervical spine
  • Atmospheric LED light system in table frame, with cycling or fxed modes
  • Tuck-away grab bars for hanging traction without thoracic restraint
  • Heated cushions provide greater patient comfort
  • Easy to transport and secure once in place
  • Complete range of accessories to suit every patient need
