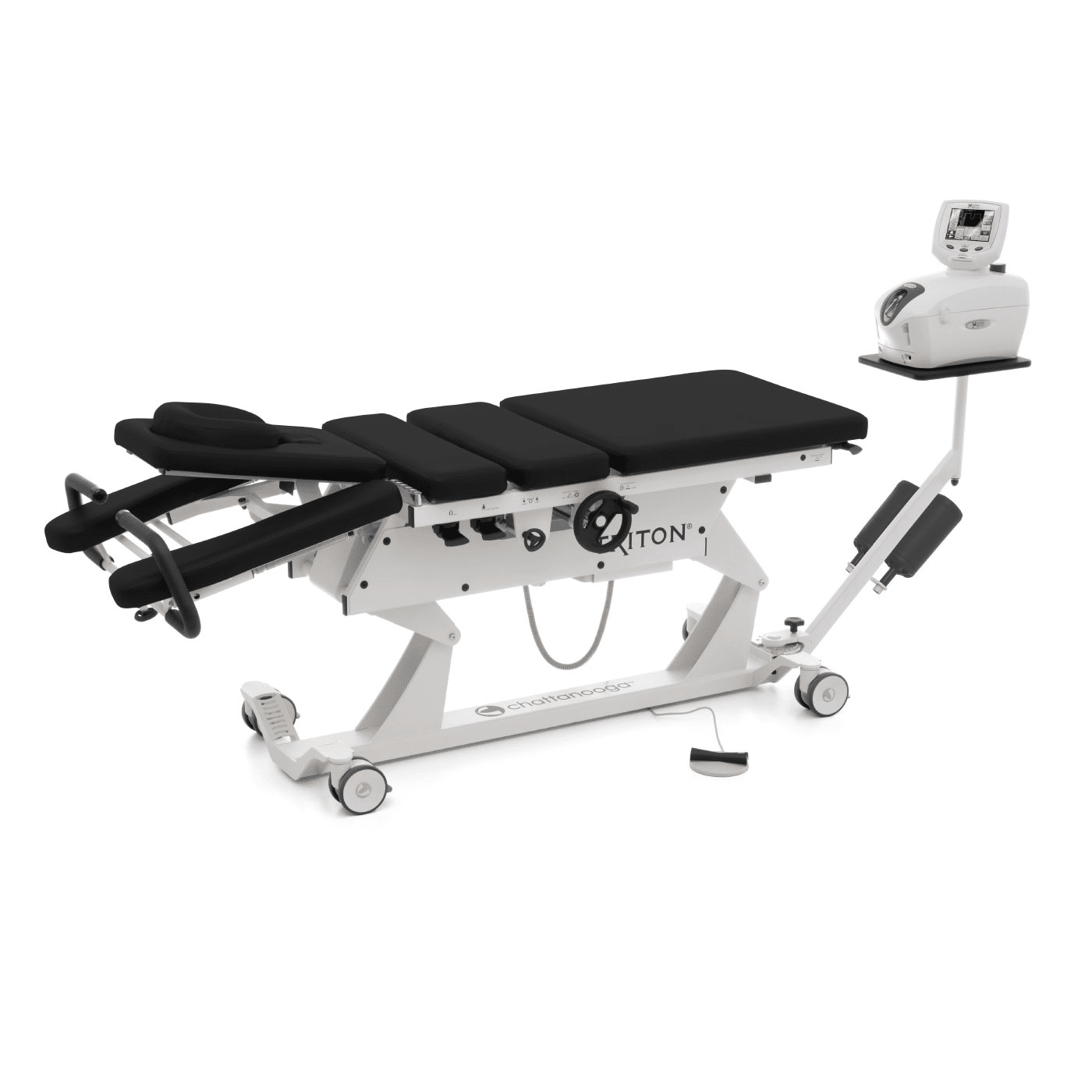

Triton 6M Table

New

Call for Price

Comprised of 6 sections, the Triton 6M traction table uses a combination of gas springs and electric power to aid manual adjustment, allowing for easy control of
table positioning.

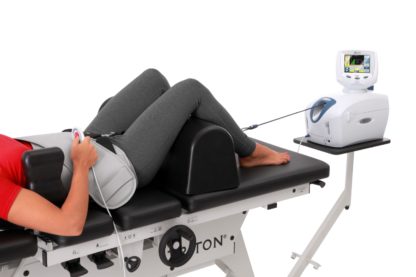

Each section is adjustable, providing a wealth of achievable patient positioning options. Together with a Triton Traction Unit, the Triton 6M is a solid choice for the basis of any therapist’s practice.

  • 6-section treatment table provides maximum patient comfort in prone and supine positions for manual and traction therapy
  • Pelvic tilt section can be adjusted from 0° to 15° to provide flexion of lumbar spine and to help address pelvic asymmetry
  • Head piece can be repositioned from -15° to +40° to allow easy access to thoracic and cervical spine
  • Tuck-away grab bars for hanging traction without thoracic restraint
  • Leg section is adjustable from 0° to 45°
  • Gas springs assist in friction-free movement of head, pelvic, chest and leg sections which are easily accessible from either side of the table
  • Foot/hand controller allows easy adjustment of table height and includes a lockable safety mechanism
  • Complete range of accessories to suit every patient need



Description

Mains Power: 120 V – 50/60 Hz
Current: Max 2A with 120V
Dimensions:
Total* 90.5 x 37 x 31 inches
Head / Back section 28 inches
Middle section 8.6 inches
Pelvic section 10 inches
Leg section 30 inches
Width 27.5 inches
Adjustment:
Height 19 inches

37 inches

Angle Inclination Head Section -15° to + 40°

Pelvic Section 0° to 15°

Leg Section 0° to 45°

Displacement Leg Section 4 inches
Dynamic lifting capacity: 440 LBs
Maximum workload: 605 LBs
Patient Weight: 363 LBs
Electrical Safety Class: Class I, Type B
Safety Tests: CE, Class I rule 12
Table Weight: 428 LBs
Average Shipping Weight: 484 LBs
Shipment Dimensions: 92.5 x 37.4 x 31.5 inches
* Dimensions are listed as L x W x H
