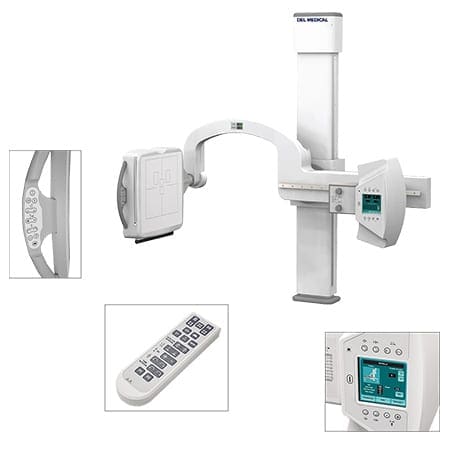

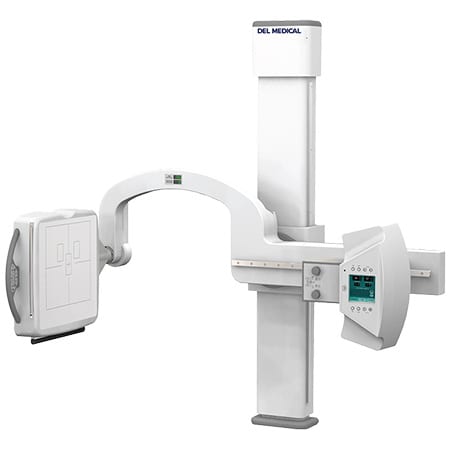

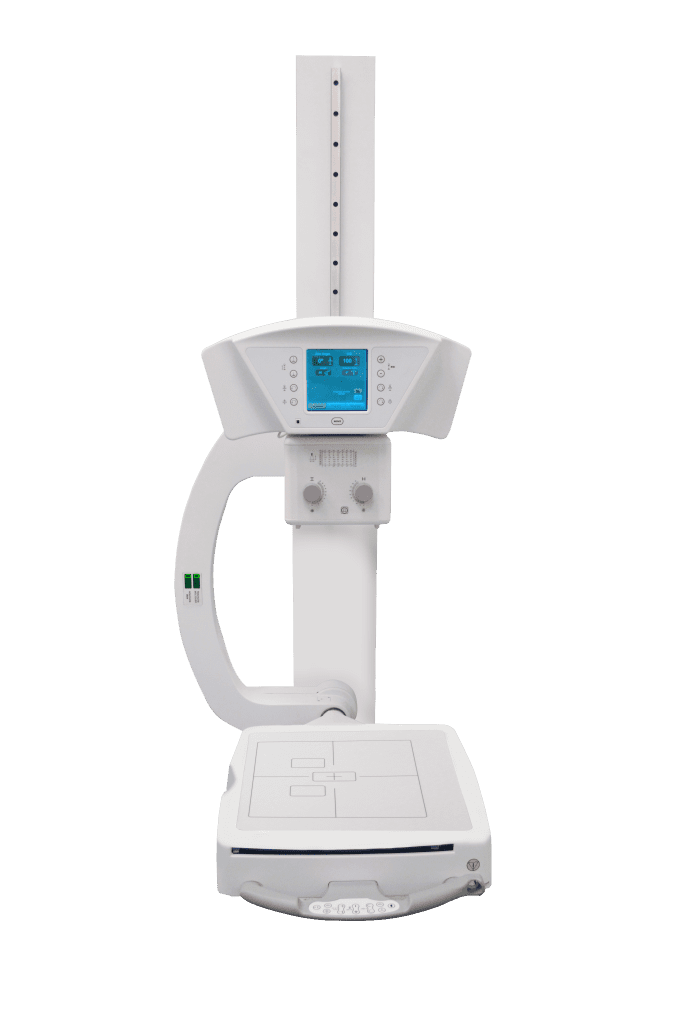

The UARM is a fully motorized radiographic system designed to automate the imaging process with pre-programmed positioning and full generator integration that can be conveniently controlled from its technologist-friendly touchscreen console.

Featuring a linear U-arm, the system tube and image receptor are always perfectly aligned regardless of U-arm arm position. This is especially useful when performing auto-stitch applications focusing on the legs and back.

Developed to efficiently perform a wide variety of exams and procedures, its automated swivel arm and rotating image receptor can accommodate a diverse range of positions for patients of all sizes.  Whether sitting, standing or lying down, the UARM  provides extensive vertical and SID travel perfect for comprehensive head-to-toe imaging.

The UARM can store up to 25 pre-programmed positions allowing for fast setup of the most frequently used applications. These positions can be easily selected from the tube mounted touchscreen.

The UARM features flexible system controls located on the tube head, side of image receptor, and optional remote controller. This functionality eliminates the need to walk to a singular control location and enables hassle-free operation and increased workflow.

Categories: , Tag:



Column height: 91″ (231 cm)

Minimum focal-spot-to floor distance (in the 90º position): 15.3″ (40 cm)

Maximum focal-spot-to floor distance (in the 90º position): 66.5″ (169 cm)

Minimum receptor-surface-to floor distance (in the 0º position): 22″ (56 cm)

Maximum receptor-surface-to floor distance (in the 0º position): 41.34″ (105 cm)

Vertical movement speed: 40 mm/s to 150 mm/s

Arm rotation: -30°/+120°

Rotation speed 3°— 10°/s:

2°/s — 10°/s

Motorized SID travel: 39.4” (100 cm) to 70.87” (180 cm)

Motorized SID travel speed: 0.4 in/s to 5.1 in/s

Receptor rotation angulation: ±45°

Receptor rotation speed: 1°/s to 3°/s

Arm weight: 719 lbs. (326 kg)

Power Requirements: 230VAC
