Universal Chiropractic System

Del Medical

The Universal Chiropractic System effectively combines flexibility, efficiency and affordability. The system will instantly improve patient workflow by eliminating the use of cassettes and developing conventional x-ray film. Instead, Universal Chiropractic Systems are powered by the intuitive Vieworks DR system giving technologists access to high resolution digital imaging and processing capabilities.

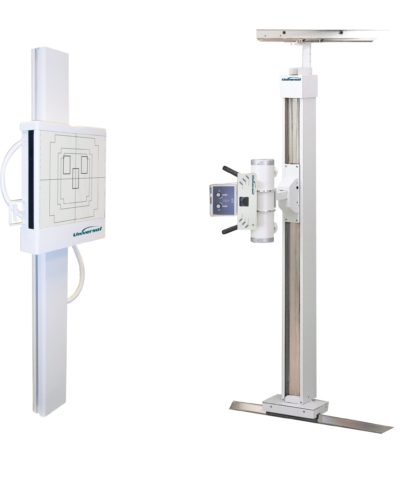

Featuring a floor-wall to floor-ceiling tube stand and a compact wall stand, the system delivers extensive vertical travel allowing for a full range of upright positions. The tube stand features electromagnetic brakes and a fixed positioned tube arm for easy and accurate positioning to the wall stand.

The slender VS100 wall stand can accommodate a wide variety of cassette-sized imaging solutions, making it perfect for traditional film, CR, and DR configurations.

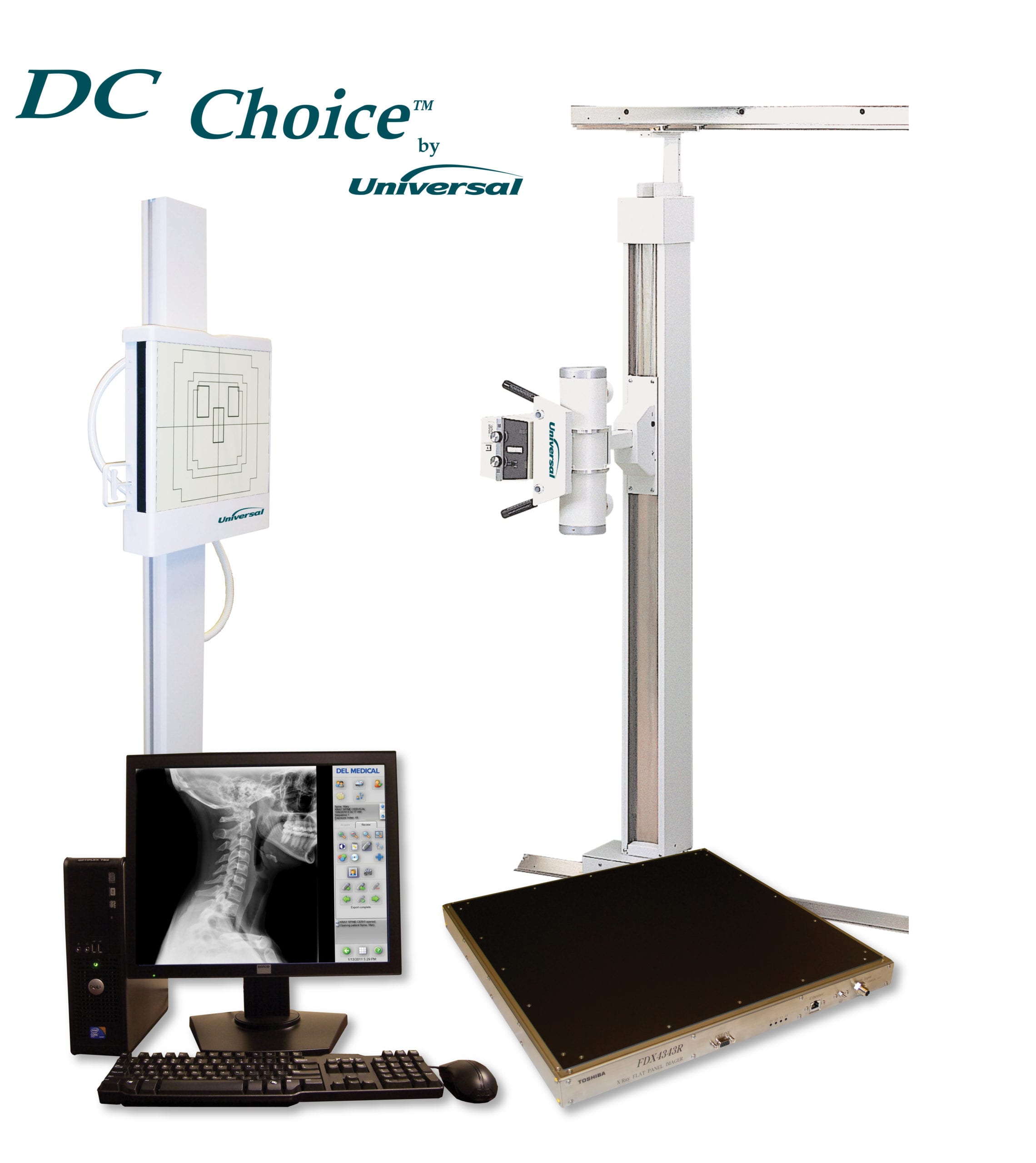

Upgrade your Universal Chiropractic system with our most affordable digital system option — Vieworks DR.

Viework’s VXView image acquisition software produces exceptional clarity and resolution, perfect for chiropractic spine studies. Images can be sent to PACS, which possesses powerful tools capable of a variety of chiropractic specific image enhancements.

Categories: , Tag:

Description

Chiropractic Tube Stand:



  • ​Longitudinal travel:  96″ (244 cm) with 8 ft. rail
  • Rail longitudinal length:  ​8 ft. standard. 12 ft. and 6 ft. optional
  • Transverse travel:  ​9″ (23 cm)
  • Column rotation:   ​±180° with detents 0°, 90°, 90°
  • ​Tube rotation:  +180°, -180°
  • Ceiling height: Minimum 96″ (244 cm), Maximum 116″ (295 cm)
  • Vertical travel:  Minimum 12″ (26.5 cm), Maximum 73″ (189 cm)



VS100 Wall Stand:



  • Max. focal spot height: 72.4″ (183.8 cm)
  • ​Depth (with receptor): 13″ (33 cm)
  • Min. focal spot height: 14″ (35.6 cm)
  • ​Width (with receptor): 23.3″ (59 cm)
  • Vertical travel range: 58.4″ (148.3 cm)
  • Receptor height: 23.4″ (59.4 cm)
  • Height: 86.7″ (220.4 cm)
  • Weight: 258lbs (117 kg)
  • Power requirements:  24 VDC
