MYVET Table i72W

New

Call for Price

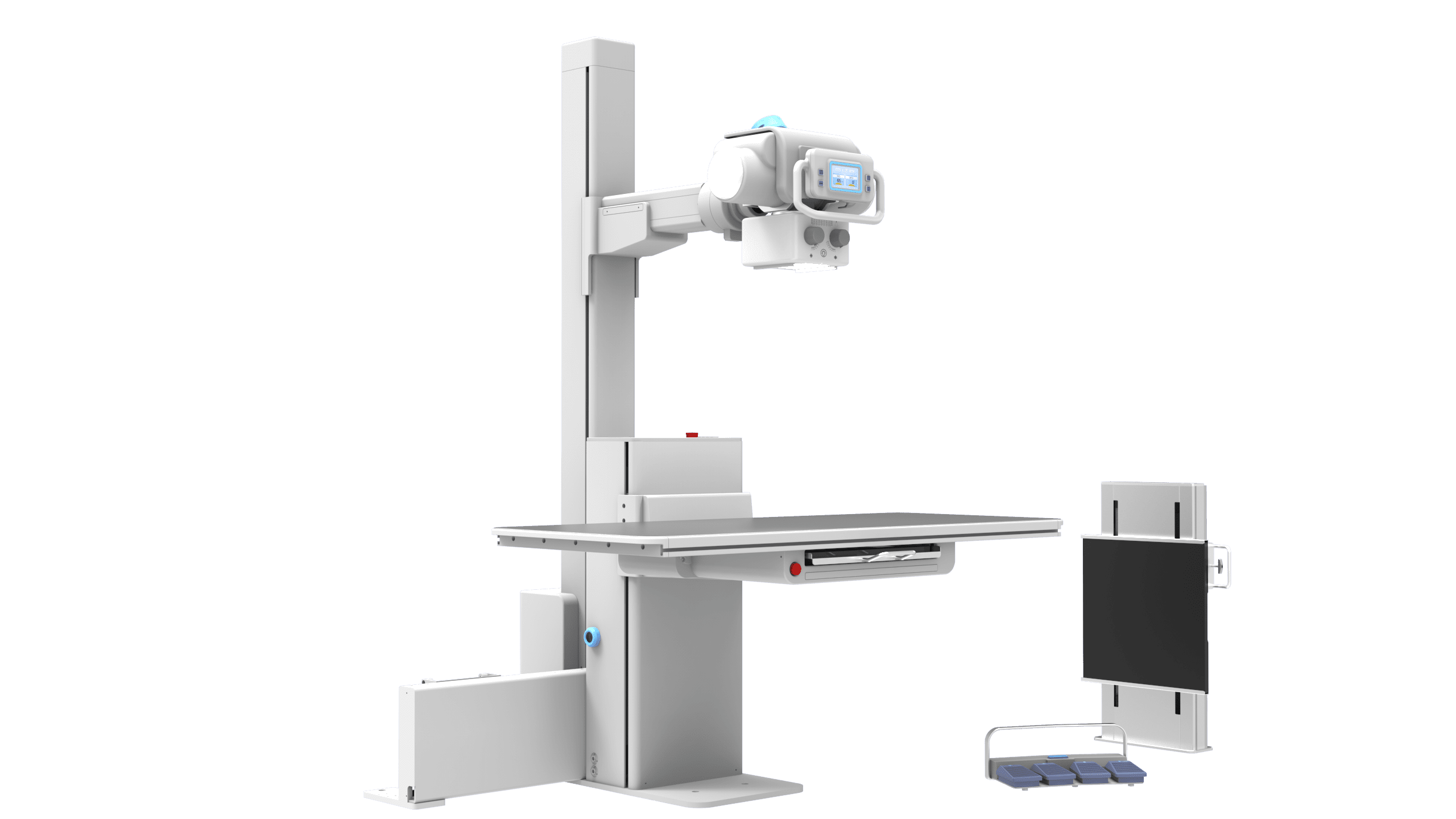

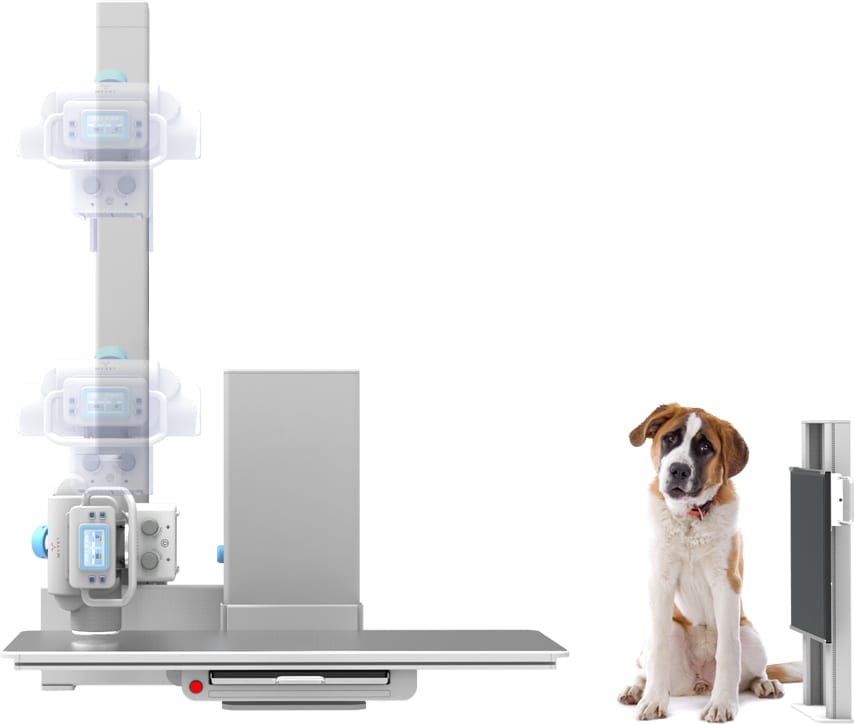

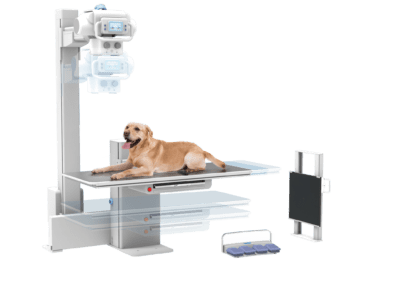

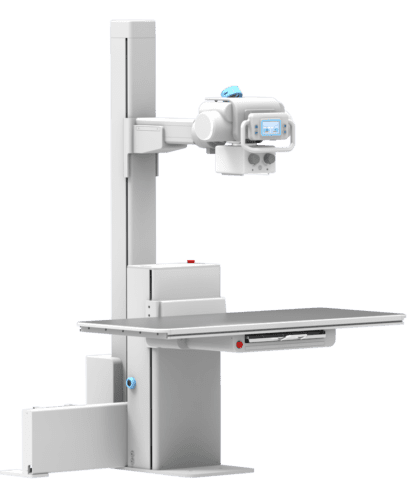

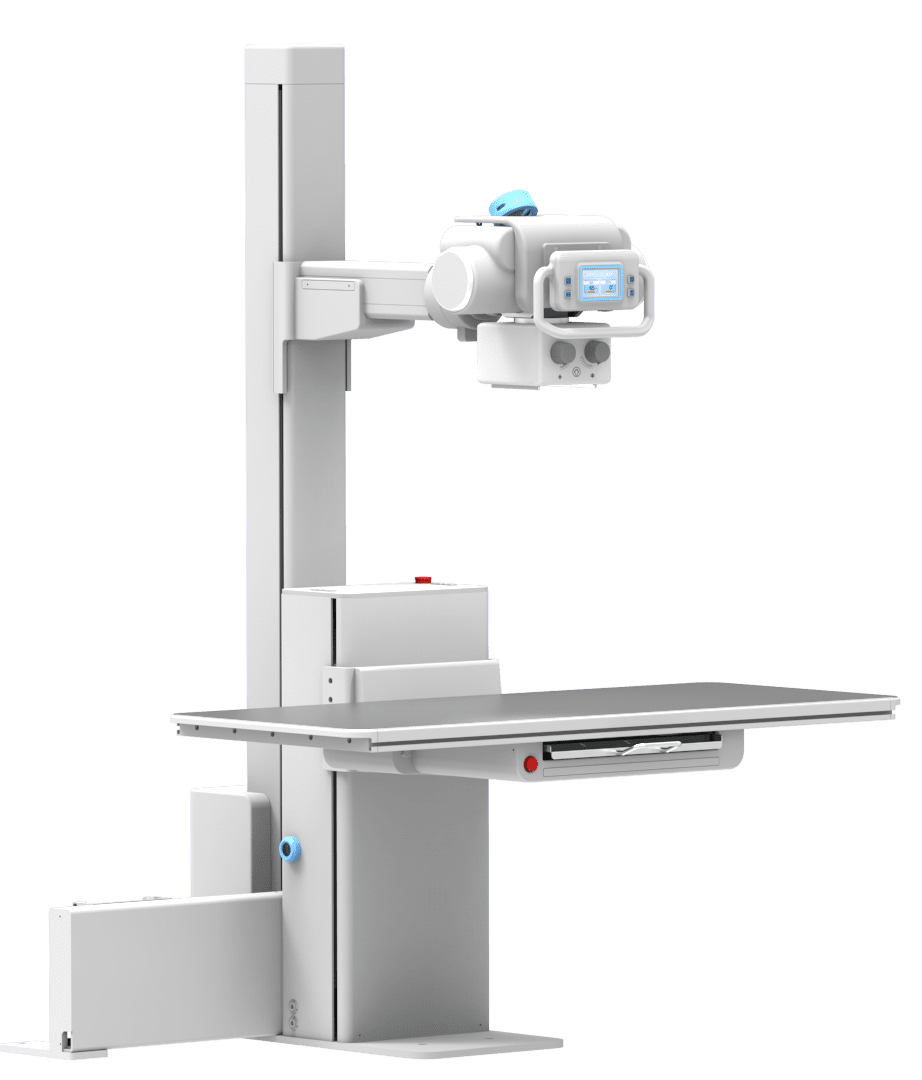

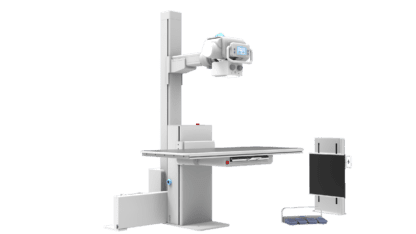

i72W, the MyVet x-ray table is a revolutionary design that delivers silent elevation to provide comfort and stability for the patient. The MyVet x-ray table is a cost-effective and workflow-efficient approach to veterinary digital radiographic imaging for your practice.

1717 Series Large Format Flat Panel Detector

The large format 17”x17” detectors provide a faster and more streamlined approach to digital radiography imaging. Unlike a traditional 14”x17” film size, a full field of view 17”x17” format eliminates the need to rotate a detector for large animals and body parts.



Download Brochure



Categories: ,

Description

1717 Digital Flat Panel Detector

The 17”x17” detectors utilize a combination of proprietary TFTs and high quality Cesium Iodide (CsI) scintillators which, along with a 127-micron pixel pitch (3.9 lp/mm), assures delivery of exceptionally sharp, high quality images.

MyVet X-ray Table Delivers More Convenience

The 17”x17” wireless flat panel detector is easy to connect in the Bucky tray. A magnetic connector in the Bucky makes it easy to maintain a constant battery charge.

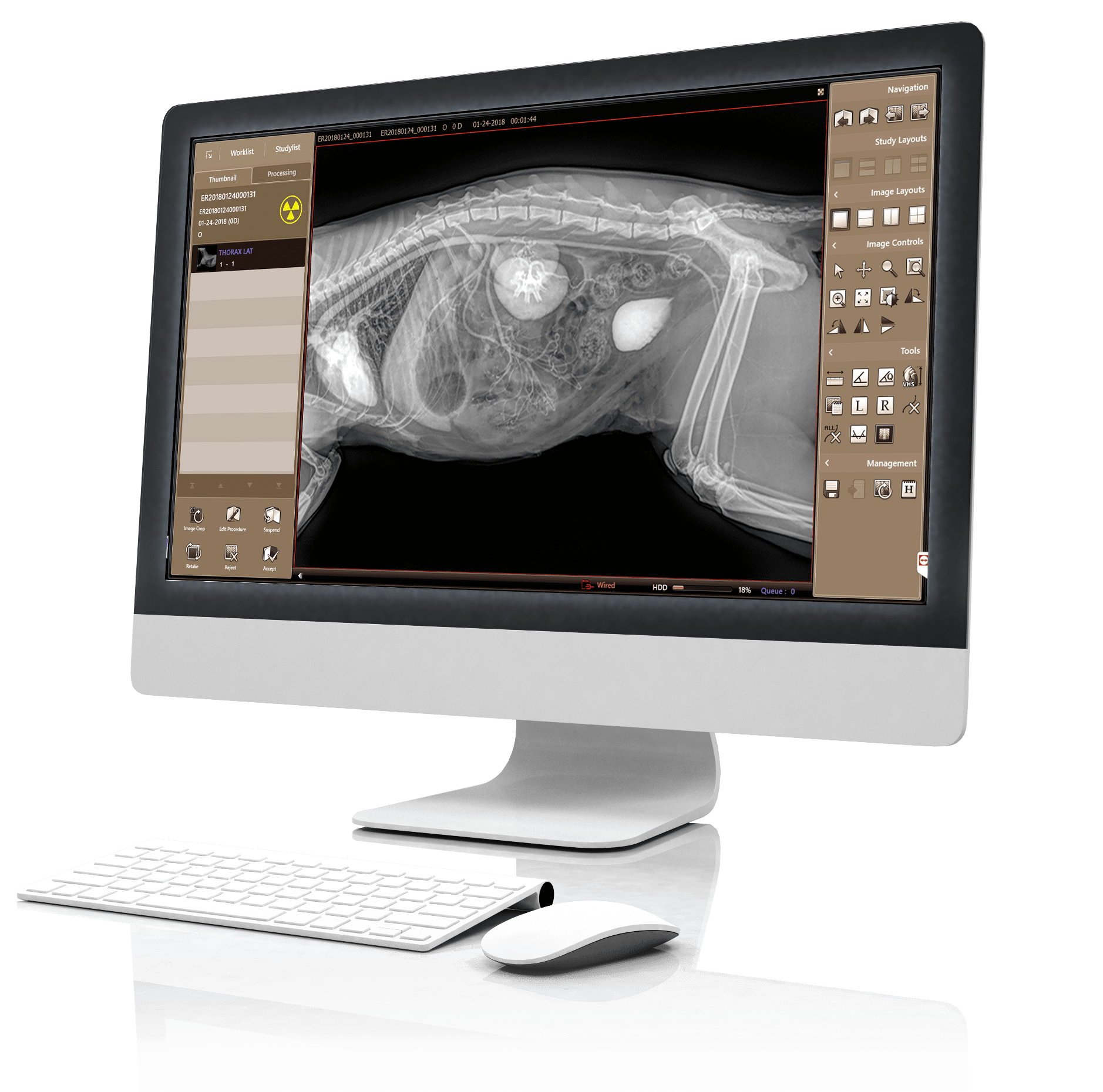

Veterinary Acquisition Software

VetView a complete image management software featuring easy data searching, fast image acquisition and user friedly functions. The functions include image viewing, reprocessing, optimizing and archiving.



  • Silent mechanical movements reduce animal startle reflexes that prevent swift exam completion
  • Tabletop lowers to less than 11” from floor, eliminating the need to lift non-sedated animals into position
  • 40 inch / 72 inch horizontal beam orientation maximizes animal comfort
  • Easily obtain true weight bearing or air/fluid level views
