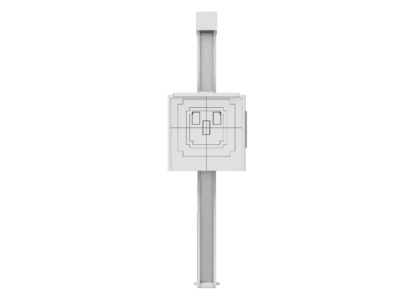

VS 100 Wall Stand


Call for Price

The ultra-compact VS100 upright is powered by an electric lock release handle and dual counterweight cables for added patient and user safety. Its expansive vertical travel of 58.4” (148.3 cm) enables a complete range of exams from skull to weight bearing knee and ankle exams.

Categories: ,


VS100 Wall Stand

Height: 86.7″ (220.4 cm)

Receptor height  23.4″ (59.4 cm)

Vertical travel range: 58.4″ (148.3 cm)

Width (with receptor): 23.3″ (59 cm)

Depth (with receptor): 13″ (33 cm)

Maximum focal spot height: 72.4″ (183.8 cm)

Minimum focal spot height: 14″ (35.6 cm)

Weight: 280 lbs. (127 kg)

Power requirements: 24 V DC at 1.2 amps
