Citation | Portable Equine Imaging Workstation
myvet imaging
Portable Equine Imaging Workstation
All the essential imaging tools an equine practitioner needs to portably acquire optimal clinical results in an easy-to-carry case. Equine practitioners can provide more complete onsite treatments from diagnoses obtained with maximum image quality and workflow efficiency for a more positive experience.
Clinical benefits | Accurate diagnosis
- 70 μm pixel pitch of the I/O sensor offers superior image quality
- Wireless DR imaging acquisition
- Equine-specific image processing
- DR and Ultrasound diagnosis software in one PC
Workflow | Portable and expandable

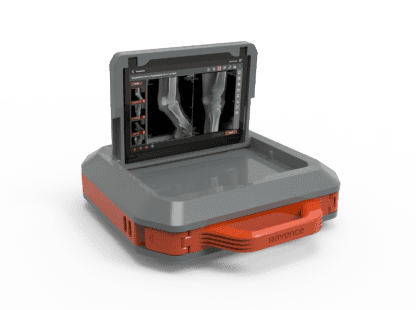

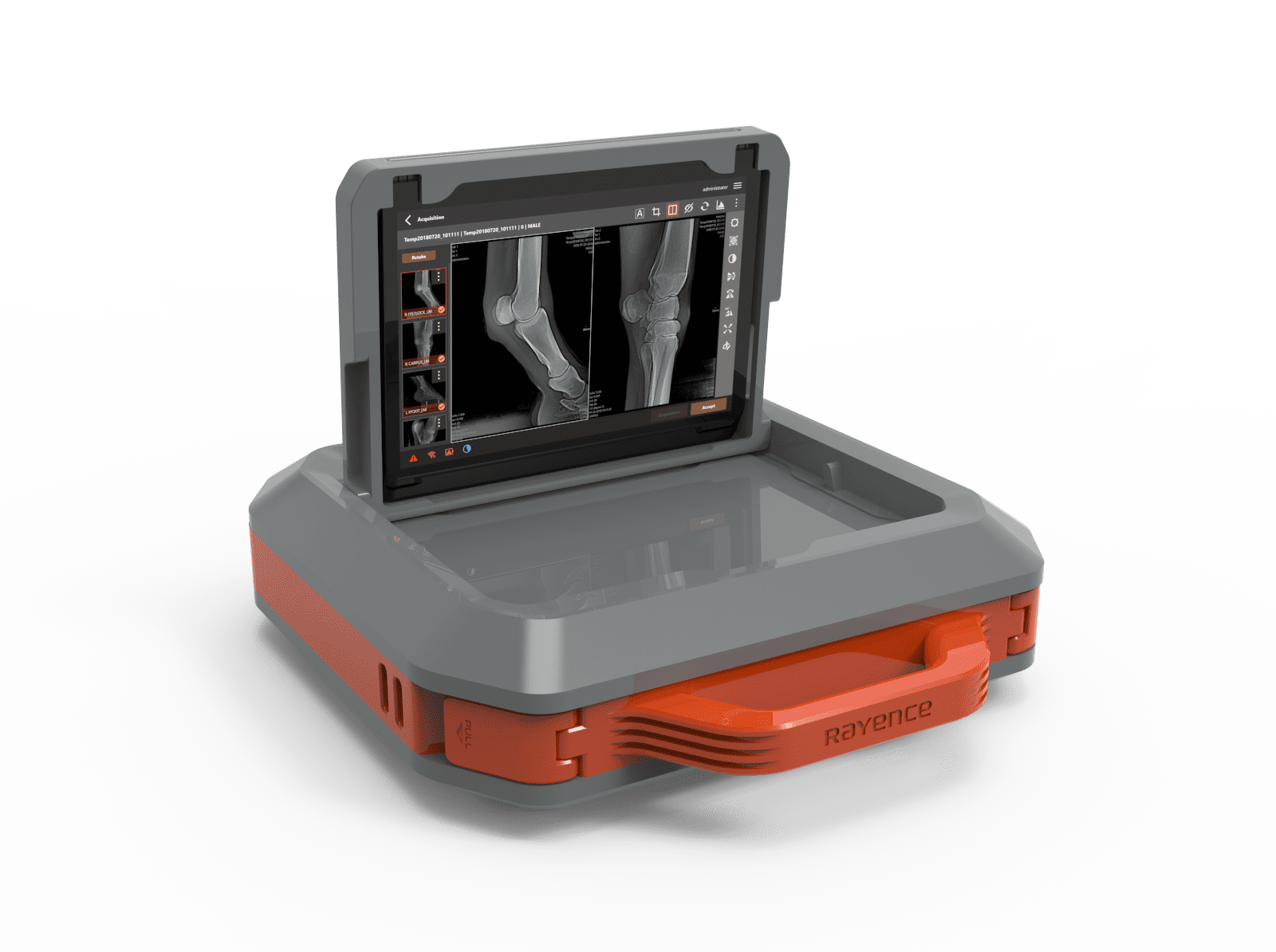

- 3-in-one rugged case with detachable tablet PC flap
- Easy to read, ultra bright touch screen display
- IP 68 rating under all working conditions
Animal comfort | Handy operation reduces animal stress
Equine specific simple and intuitive software interface
Fast acquisition (< 2 sec preview time, < 5 sec cycle time)
Wireless alignment sensor reduces repeat images
Description

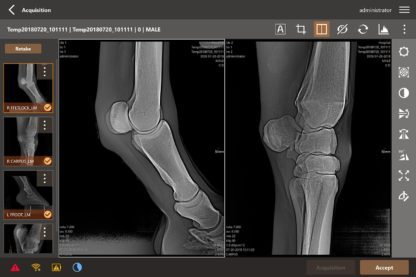

Diagnostic image acquisition
Contrast-enhancing image processing to emulate conventional X-ray grid contrast improvement
- 10×12 inch wireless flat panel DR detector provides maximum diagnostic images
- Tablet PC with MyVet Imaging Equine software
- Detector protection case and batteries

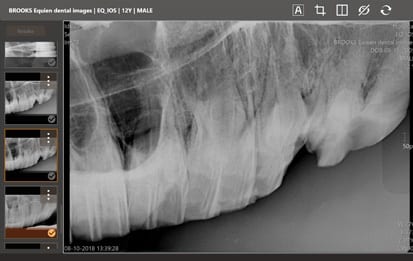

Intraoral examinations
Equine-specific image processing algorithm for CMOS intraoral sensor
- 4×6 inch CMOS intraoral sensor improves root visualization by reducing structure superimposition
- USB interface cable
- Positioning handle and silicon sensor cover included
Soft tissue evaluation
Optimized ultrasound image processing for soft tissue evaluation
- Linear transducer: 3-12 MHz
- Multiple imaging modes and processing
- Image acquisition software
- USB interface cable
