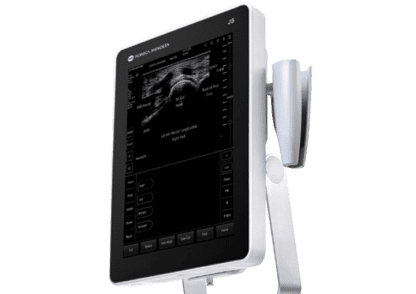

J5 Ultrasound


Call for Price

Simple Needle Visualization

There is no steep learning curve or manual controls to navigate with the J5 System. Simply touch an MSK exam preset icon on the screen for frequently used functionality to appear before you tap, drag, pinch and slide to completion. One-touch optimization sharpens the image into crisp, clear view to aid in diagnosis.

The J5 System incorporates a 15” high-resolution, anti-glare screen with a wide viewing angle that remains touch-responsive through gloves and gel. Needles are clearly visible during ultrasound-guided procedures.

Simplified Workflow & System Efficiency

A three-second start-up time from standby, touch-enabled MSKspecific settings and precise fingertip measurement control help improve workfl ow efficiencies and allow patients to pass more quickly through your facility. Other productivity-enhancing features include built-in wireless communications and a 2+ hour battery. The J5 System is backed by a five-year warranty.

Ergonomic design

The J5 System can either be mounted on an ergonomically designed table stand, VESA plate for wall mounting or a height adjustable mobile cart.



Main Unit Specifications
  • Transducer cable management
  • Built-in battery supports 2+ hours of continuous scanning
  • 15” high-resolution, anti-glare touchscreen with wide viewing angle
  • Built-in wireless network
  • Intuitive, touch-enabled user interface
  • Simplified workflow with focused MSK presets
  • Frequently used functions on top-level screens for rapid assessments
  • Fingertip control menu areas and measurements
  • One-touch image optimization
  • Optimal needle visualization
  • Start-up in under 25 seconds
Probe Specifications
  • Type: Linear probe L14-4 (upgradable to L18-4)
  • Bandwidth: 4 – 18 MHz
  • Field of view: 38 mm
