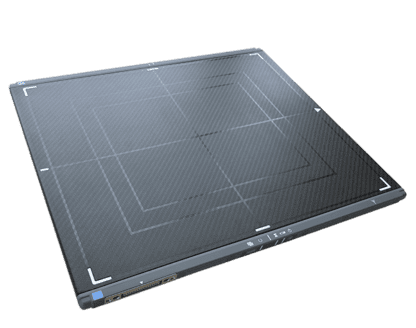

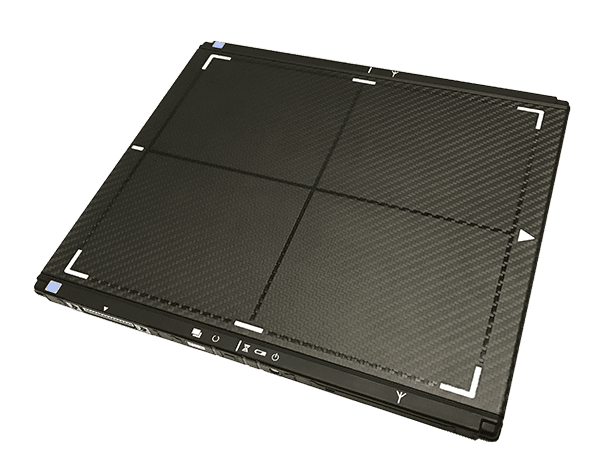

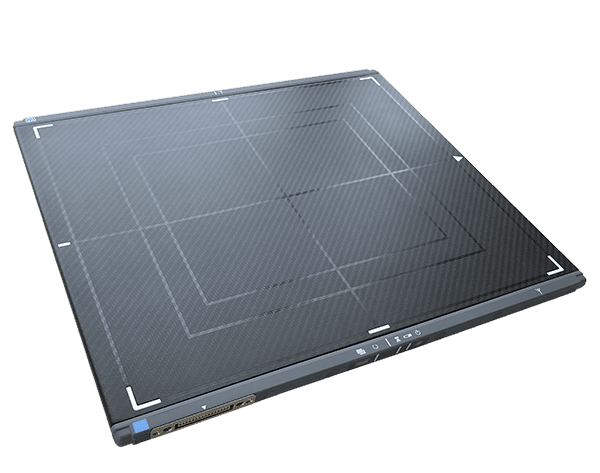

20/20 Momentum Wireless DR Panel

20/20 imaging

Hospital-grade Cassette Sized wireless dr Flatpanel Technology

Opal-RAD Software

user friendly patient database, imaging tools, & acquisition

Powered by medical imaging’s fastest distribution engine and open Web-based technologies, Opal-RAD will change the way you think about taking x-rays.

A feature-rich, scalable and flexible picture archiving and communication system (PACS), Opal-RAD enables advanced digital image interpretation, management and archiving at a uniquely affordable price.

(mOpal) also available as an add-on

SPECIFICATIONS

  • Imaging Area: 10″ x 12″ / 14″ x 17″
  • Scintillator: CsI (Cesium)

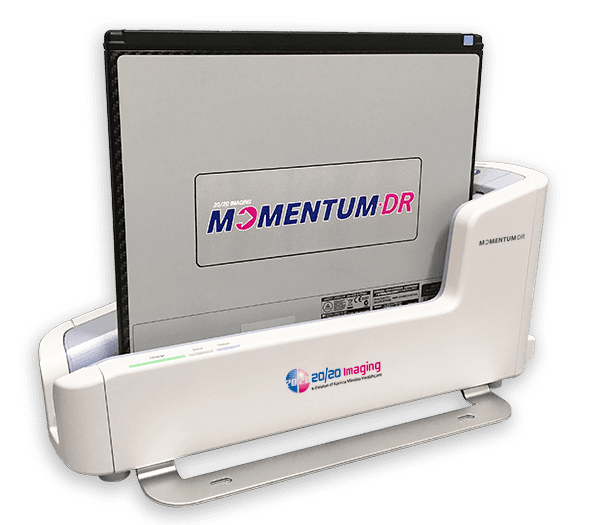

  • Rapid Charge (empty to full) – 10×12: 10 min | 14×17: 13 min
  • 10×12 Charge life: > 150 images/4 hrs cont. use*, 8 hrs in stand-by
  • 14×17 Charge life: > 200 images/5.5 hrs cont. use*, 16 hrs in stand-by
  • Cassette sized
  • 16-bit AD Conversion
  •  10×12: 3.75 lbs | 14×17: 5.5 lbs
Category: Tag:

Description

The Diagnostic Image Viewer screen provides a wealth of tools and options to assist in reading and manipulating high-resolution medical images.

  • State-of-the-art DICOM viewer delivers powerful, intuitive workstation functionality
  • Quick function shortcuts integrated for efficiency
  • Full Chiropractic (DC) tools included with package purchase
  • Available Chiropractic stitching (Manual & Automatic) contact sales for details
  • Podiatric (DPM) Tools available†
  • WORLDWIDE access: view from anywhere!*
  • High-resolution multi-monitor support
  • 4k monitor support
  • Customize screen layouts; up to 9 images per monitor
  • Fully customizable settings to accommodate your specific needs
  • Compare images (post/pre op)
  • Refresh (see saved/available images, while study is being performed)
  • Custom Toolbox (see top-left of above image), fully customizable annotations/tools
  • Bone Enhancement – reprocess images sharper for enhanced diagnosis
