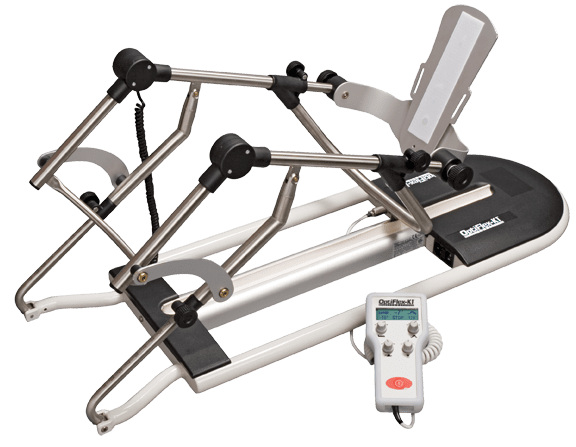

OptiFlex-K1

chattanooga

Continuous Passive Motion is a postoperative procedure designed to aid in the recovery after joint surgery. After extensive joint surgery, if a patient fails to move their joint, the tissue around the joint will become stiff and scar tissue will form, resulting in a joint with limited range of motion, which often takes months of physical therapy to recover. OptiFlex-K1 Knee CPM has interchangeable hand controls for maximum versatility.

Category: Tag:

Description

  • Weighs just 23 lbs (10.4 kg), making it the lightest knee CPM on the market
  • Only 38 inches (97 cm) long
  • Wide low-profile, closed-base frame for stability
  • Faster motor speed
  • Single screw drive
  • Reversible footplate for shorter legs
  • ROM -10 to 120
  • On-board power supply
  • Patient lockout feature
  • Accommodates patients 4 ft to 6.6 ft (1.2 m – 2 m)
  • Two-year warranty
Knee Flexion 120°
Knee Extension -10°
Speed 25° – 180°/minute
Pauses 0 – 59 seconds
Force Reversal 45 Kp of force* (built in)
Patient Height 4 – 6.5 ft (1.2 – 2 m)
Calf Length Range 10″ – 22″ (25.4 – 55.9 cm)
Thigh Length Range 12″ – 19″ (30.4 – 48.2 cm)
Mains Power 100V-240V, AC 50-60Hz
Unit Weight 23 lb (10.4 kg)
Shipping Weight 54 lb (24.5 kg)
Dimensions 38″ x 14″ x 9″ (97 cm x 36 cm x 23 cm)
Electrical Safety Class Class 1, Type B
Safety Tests IEC 60601, 1:1988 +A1:1991, +A2:1995, CAN/CSA C22.2 NO 601.1 M90, ANSI/UL 60601-1, IEC 60601-1-2, IEC 60601-1-4, ISO 14971, ISO 10993-1
