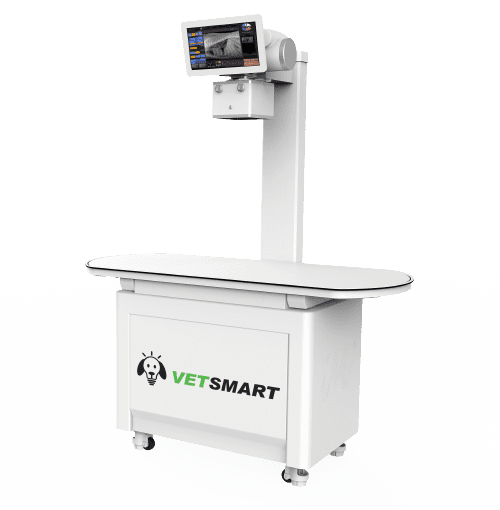

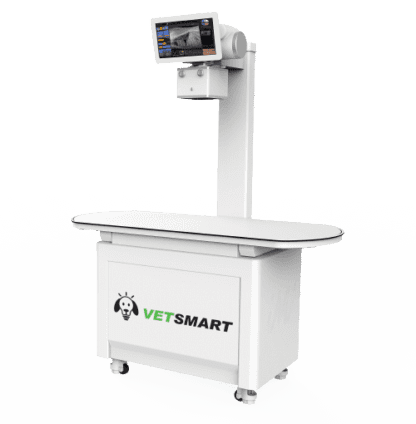

VETSMART™ Table System X-Ray Solution

• Fixed 40″ SID
• Toshiba x-ray tube 140 HU 1-2mm focal spot
• kVP range: 40-150kV
• Single Phase 208-230VAC
• High frequency 32kW capacitor assisted 400mA generator
• 15″ Touch Screen Operator Console
• Six exclusive table base/table top designs
• 40″ Base w/ 64″ standard table top
• 30″ Base w/ 40″, 48″, 56″ table top options
• 40″ Base w/ 48″, 56″, 64″ table top options
• Oval top w/ urine track
• Unique Push and Open pull out tray to access DR detector
• Exclusive Push and Open Front panel latch mechanism for easy generator access

Download Brochure

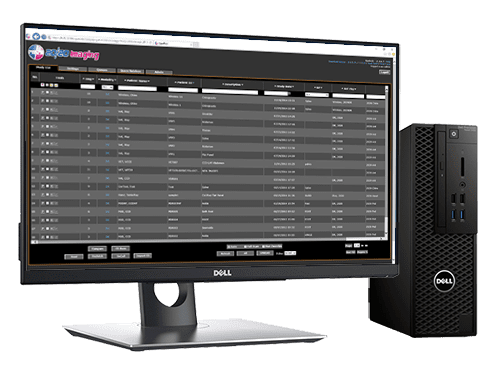

PC Hardware

Business Class Components†

Dell Server PC (Full PACS)*

• Core i5, 8GB ram †
• 2TB RAID 1 mirror (failsafe system)
• Space saving Small Form Factor design

Dell 24″ LED IPS 2MP Touchscreen Monitor

• 10-point Touchscreen
• High Quality Display for optimized viewing
• VESA Wall-mount compatible

VHS (Vertebral Heart Score tool)

Vertebral Heart Size (VHS) is a number that normalizes (indexes) heart size to body size using mid-thoracic vertebrae as units of measure (see left). It has become the standard indicator of radiographic heart size in dogs, cats, and several other species.

*VHS Tool Included
