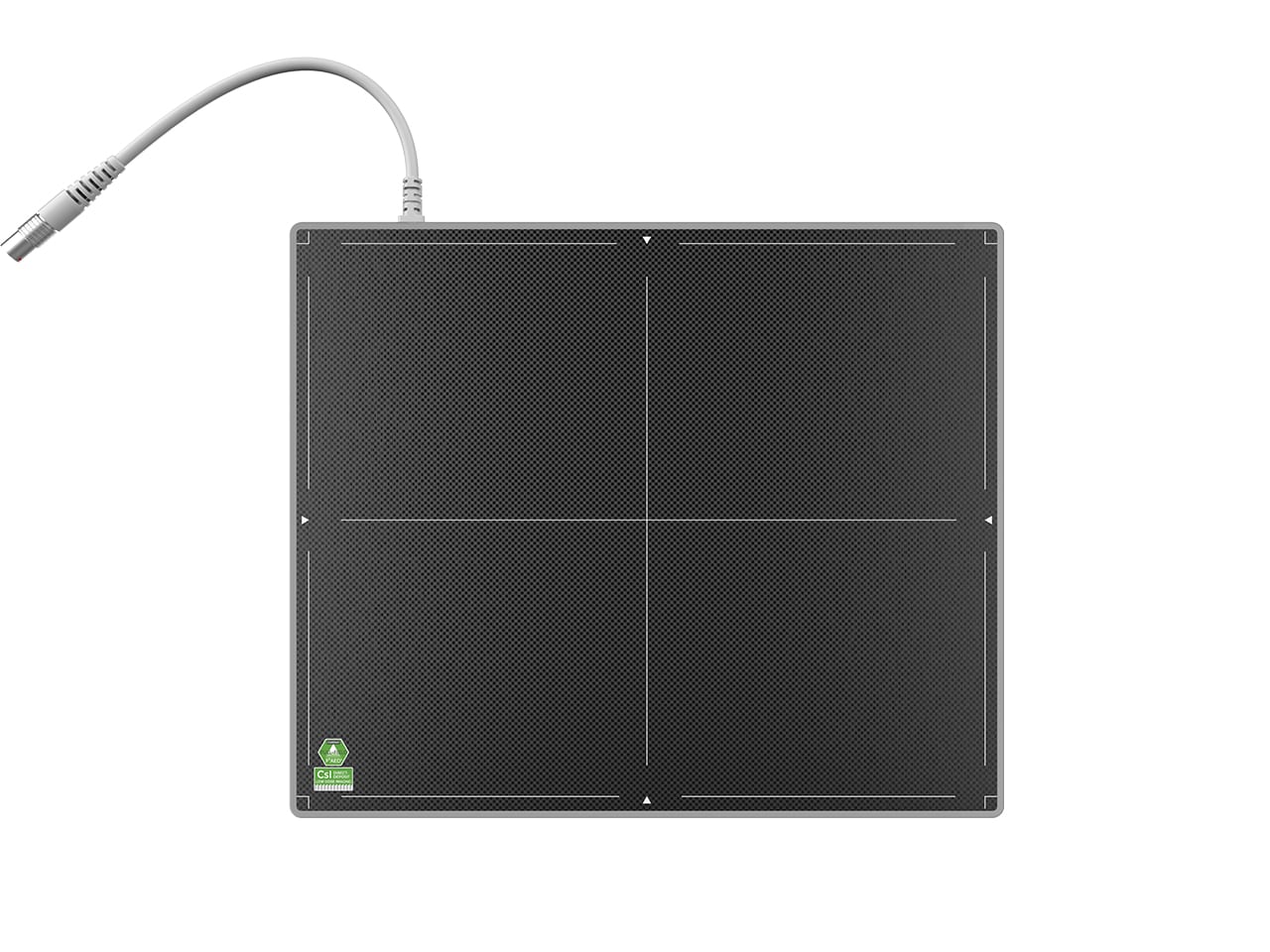

JPI ExamVue DR 14×17 Tethered Detector
New
Call for Price
The 14” x 17″ExamvueDRC tethered cassette-sized detector easily fits into standard bucky tray cabinets
for upgrading a film or CR system to a flat panel DR system. Lightweight, slim design with an award winning
built-in foldable handle, rubber insulated frame and high strength aluminum-alloy case ensure safe and convenient
operation and moves. F2AED® eliminates wiring to the generator.
| Scintillator | CsI Direct Deposit |
|---|---|
| Active Area | 14″x17″ (434mmx355mm) |
| Pixel Array | 2816 x 2304 |
| Pixel Pitch | 154um |
| Resolution | 3.3lp/mm |
| Greyscale | 16bits |
| Data Output | Gigabit Ethernet |
| Image Acquisition Time | Pre Processing 2-3 seconds |
| Exposure Control | AED or Manual |
| Power Supply | AC 100-240V, 50/60Hz |
| Environment | Storage: -20 ~ 55°C Operation: 5~35°C |
| Dimensions(W x L x H) | 18 x15 x 0.6″(460 x 384 x 15mm) Cassette Sized Standard for Wall or Table |
| Weight | 7.2 lbs |
| Housing Material | Aluminum alloy back |
