This revolutionary table programs static & intermittent lumbar traction from 40 to 200 lbs. Traction hold & relax times are adjustable from 1 second up to 10 minutes. The angle at which decompression is applied is adjustable. Patient setup is easy.
Best of all, the Galaxy McManis Mobil-TracTM can be utilized for normal patient management. Therefore, there is no need to purchase a limited use table that does decompression therapy only.
Galaxy McManis Mobil-Trac Specifications
|Height Range||24″ to 40 “|
|Length Extended||90 Inches|
|Length Retracted||64 Inches|
|Cushion Width||21 Inches|
|Table Width||22 Inches|
|Shipping Weight||430 lbs. (approx)|
|Actual Weight||380 lbs. (approx)|

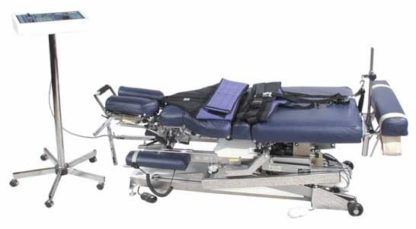

|A Standard Computerized Console incorporates height selector and programmable variable flexion and traction controls. Shown on movable stand, console may also be mounted on a wall or placed on a desk.|
|The Galaxy McManis Mobil-TracTM is a computerized table that offers decompression therapy and flexion / distraction. The high-tech designed Mobil-Trac is completely self-contained. This revolutionary table programs static and intermittent lumbar traction from 40 to 200 pounds. Traction hold and relax times can be programmed from 1 second through 10 minutes. Traction can be applied in either a prone or supine position and in various lateral and horizontal angles. When in a prone position, you may manually distract and laterally side bend the patient.|
|Lloyd Table Company’s optional Total Dimension Flexion Headpiece TM offers numerous features Including: 8 adjustable face opening widths, tilting, elevation, lateral side bending, rotation, flexion distraction, manual traction, forward motion and toggle (straight) drops. Other options available include: Manual and Automatic Cocking drops on all sections including the optional Rotating chest & lumbar. Controls for drops are Located on both sides of the table. Automatic cocking drops are hydraulic; no noisy air compressor is required!|
|The Galaxy McManis Mobil-TracTM is equipped standard with Auto Pelvic Flexion Distraction. The table provides as little as 1/4 inch of automatic flexion while still controlling the speed of the up and down movement separately. The Mobil-Trac offers all the the basic McManis table and can be automatically adjusted to preselected heights from 24″ to 40″. Optional manual and automatic cocking drops feature fully adjustable head, chest, lumbar and pelvic cushions.
A convenient patient-controlled shutoff switch can be placed in the patient’s hand. When pressed, the traction, if operating, will discontinue and return to “0” pounds of pressure, or if auto-flexion is on, it will stop.
