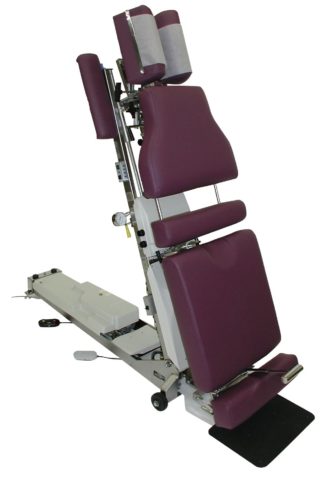

Galaxy Ultimate Table (Elevation, Hylo, and Flexion-Distraction)

lloyd

Standard Features

  • Hydraulically controlled elevation
  • Tilting (Hylo) capability
  • Automatic, semi-automatic manual flexion distraction
  • Electronic height selector
  • Powered axial distraction
  • Lateral bending
  • One piece adjustable chest with spring breakaway
  • Extension/Retraction of length – powered
  • Electric height selector
  • Deluxe/Adjustable Headpiece
  • Chest/Pelvic separation (powered)
  • Adjustable ankle rest – vertical & horizontal
  • Pelvic – Flexion/Distraction (manual, semi-automatic & automatic)
  • Pelvic – Lateral side bending
  • Axial Extension/Retraction (powered)
  • Ankle straps
  • Tilt safety switch
  • Speed adjustment for hylo feature
Category: Tag:

Description

The Galaxy Ultimate can be smoothly tilted or lowered hydraulically at infinitely adjustable speeds from horizontal to 70° controlled by foot pedals on both sides of the table. A safety switch prevents the table from accidentally lowering from the hylo position. A foot plate automatically comes up to meet the patient’s feet when table begins to lift.

Optional Features:

  • Lloyd’s superior designed auto and manual cocking drops
  • Pelvic rotation
  • Rotating chest lumbar with breakaway
  • Retractable flexion T-BAR
  • Snap-on covers
  • Total dimension flexion headpiece
  • Grab bar
  • Angled T-bar
  • Manual & Automatic drop ankle
Galaxy Ultimate Table Specifications
Height Range 22″ to 38″
Fully Extended 91 Inches
Fully Retracted Including Footplate 81 Inches
Fully Retracted Excluding Footplate 65 Inches
Cushion Width 21 Inches
Table Width 22 Inches
Shipping Weight 500 lbs. (approx)
Actual Weight 450 lbs. (approx
galult3m
Optional precision auto and manual cocking drops feature fully adjustable head, chest, lumbar and pelvic cushions and a specially designed tension adjustable spring release on the chest and lumbar sections. Separation of chest and pelvic sections can be as much as 12½”.
