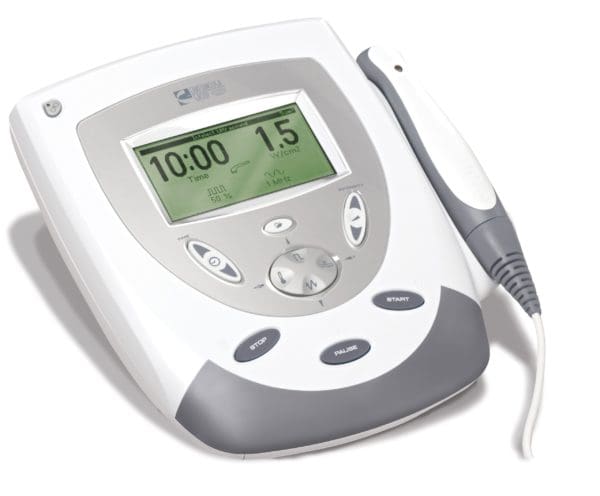

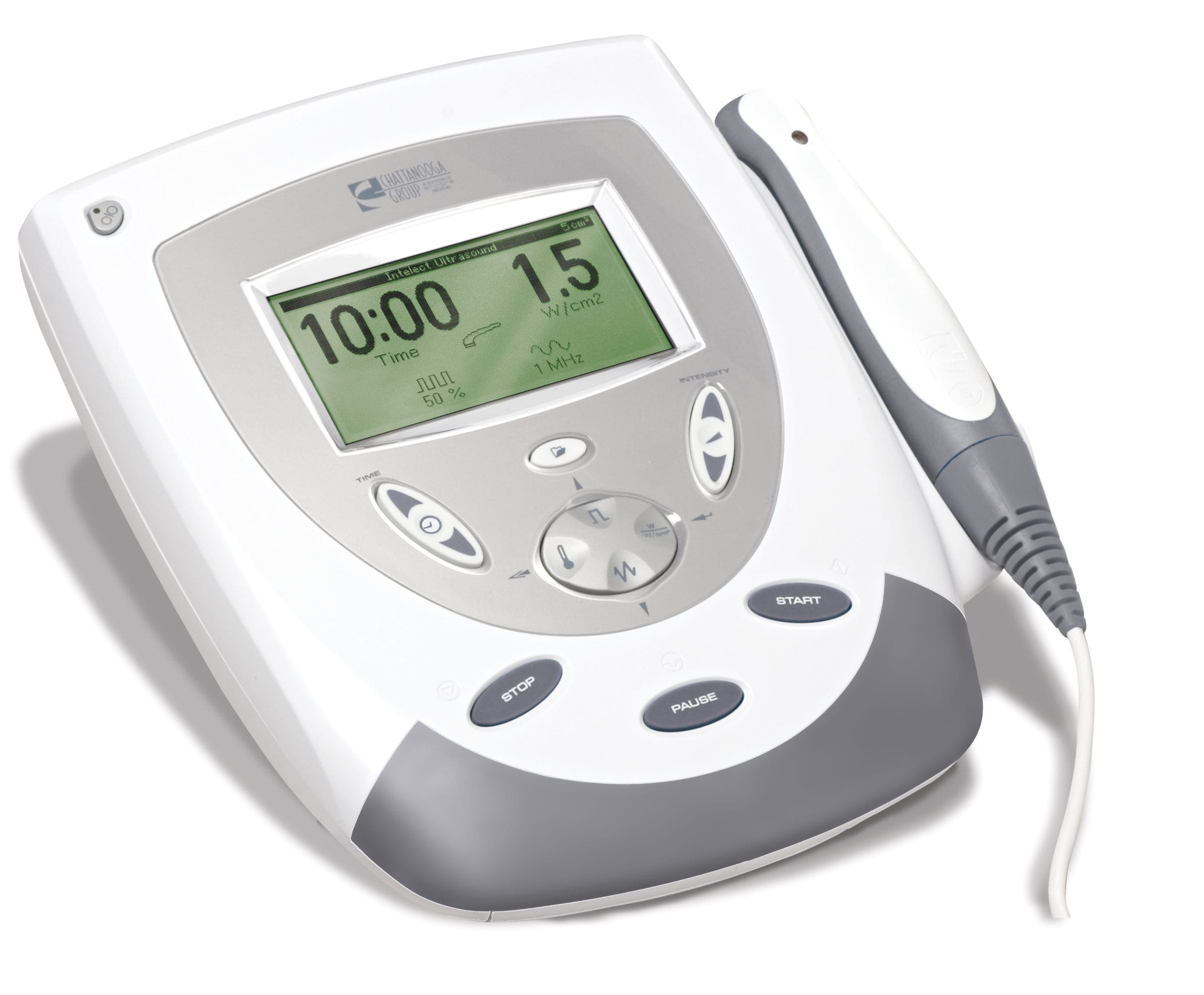

Intelect TranSport Ultrasound

chattanooga

Lightweight design, along with battery-powered option and custom designed mobile carrying bag, make transport easy.
Ultrasound is a mechanical stimulus delivered to the body by means of an ultrasound beam emitted out of an applicator. This ultrasound beam is generated in the ultrasound head by means of a crystal and transmitted to the body through the aluminum surface of the head and contact medium. Therapeutic ultrasound has a frequency range between 1 and 3.3 megahertz (MHz).

  • Fully functional 1 and 3.3 MHz frequencies
  • Ten user-defined memory positions for User Protocols
  • Pulsed and continuous therapy operation (10%, 20%, 50% and 100%)

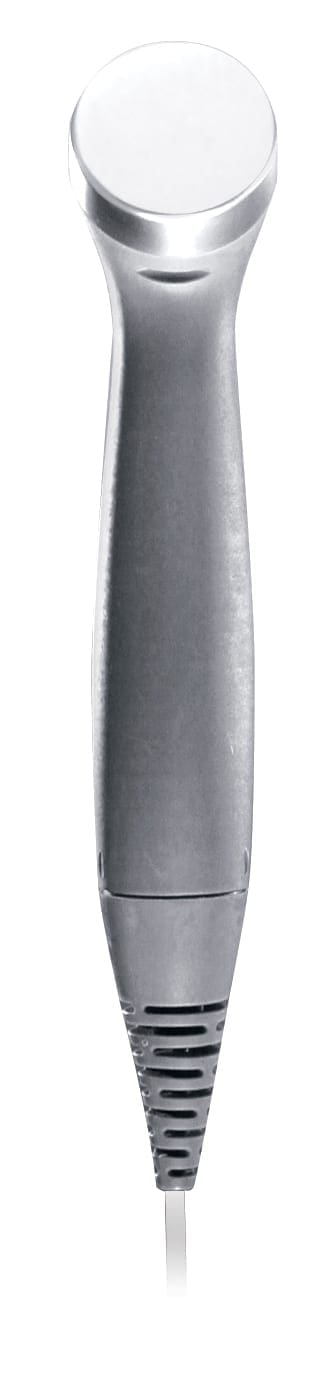

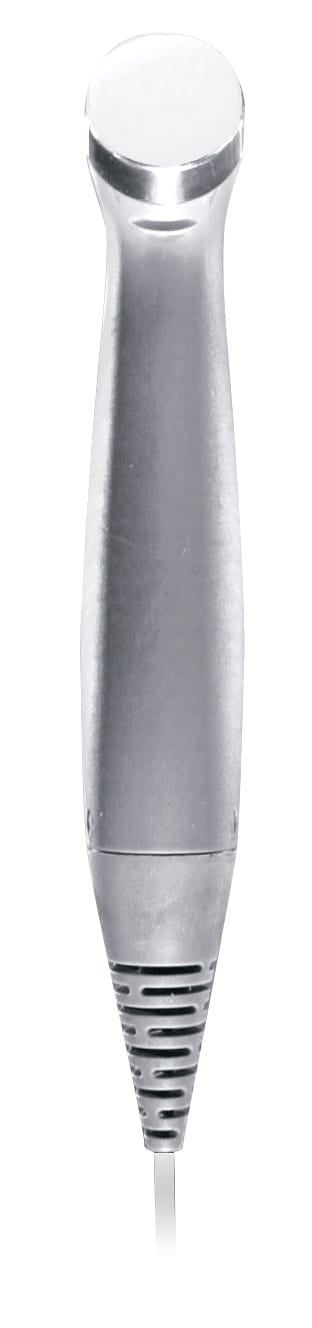

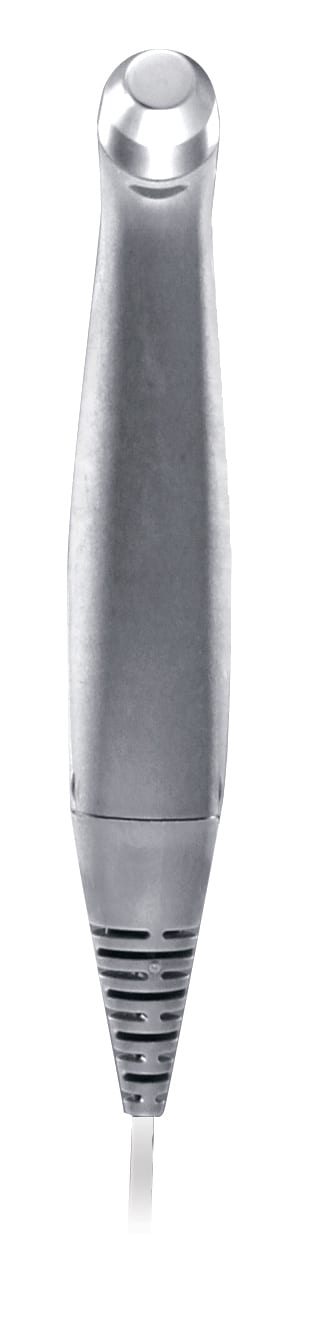

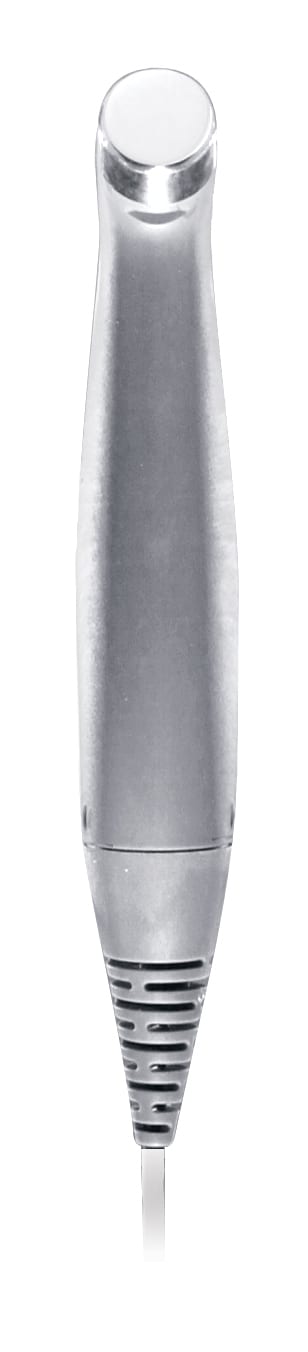

  • Ergonomically designed sound head applicators in variety of sizes (1 cm, 2 cm, 5cm and 10 cm)
  • Sound heads are watertight for use in underwater therapy
  • All Sound Head Applicators are interchangeable due to Electronic Signature? residing on all transducers
  • Head-warming feature on all Sound Head Applicators
  • Unit uniquely designed for tabletop, wall mount, therapy cart or mobile use
  • 110V or battery powered option
  • Optional Therapy Cart integrates with the unit to maximize storage of clinical supplies
  • Two-year warranty



Category: Tag:

Description

Main Power 100 – 240 VAC~50/60 Hz. 1.0 A
Product Weight 5 lb (2.3 kg)
Shipping Weight 9 lb (4 kg)
Dimensions 12.9″L x 11.3″W x 6.4″H (32.8 cm x 28.8 cm x 16.3 cm)
Electrical Safety Class Class 1, Type B
Safety Tests UL/IEC/EN 60601-1, IEC/EN 60601-1-2, IEC 60601-2-5
