Fujifilm Persona CS

New

Call for Price

The Persona CS Compact C-Arm is one of a kind.  With its powerful 5kW generator Persona CS provides over twice the power of typical compact C-arms.  This along with its rotating anode Persona CS is improving image quality and X-ray penetration for patients of all sizes.  This unit is not only lightweight and compact in design, it also has a large 27” touchscreen monitor with three-way articulated arm to ensure maximum viewing.  This Persona CS is available in your choice of 21 x 21cm  or 30 x 30cm Cesium Iodide flat panel detector.  Persona CS in addition has options of Wi-Fi video transmission, display unit, wireless foot switch, instant login with Smartcard NFC device.

  • X-Ray generator: 5 kW
  • X-Ray Tube: Rotating Anode Focus: 0.3 mm / 0.6 mm
  • Flat Panel Detector: 21 x 21cm  or 30 x 30cm
  • Operator control panel: Multi-Touch, LCD Color panel  12.5”
  • Onboard Monitor: Multi-Touch Projected capacitance 27″ touch screen
  • DICOM
  • C-Arm Weight Unit: 683 lb

Brochure

Categories: , ,

Description

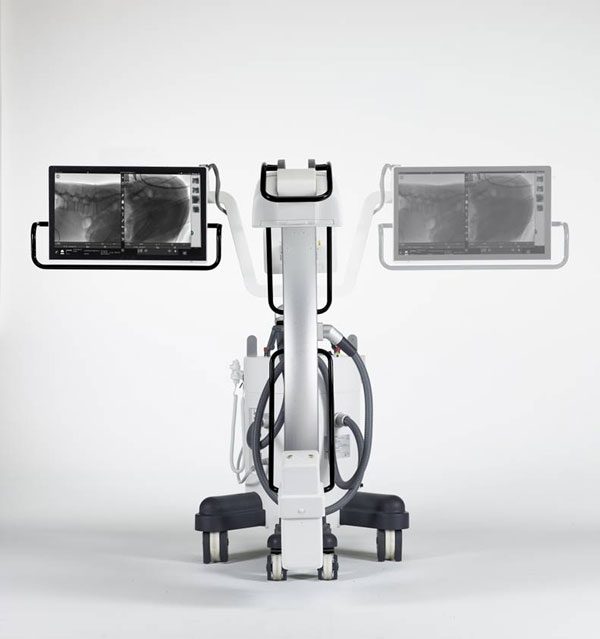

DISPLAY UNIT

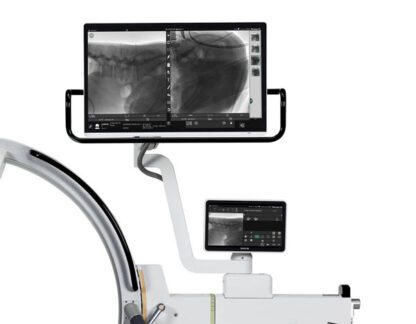

View, edit and postprocess images with an onboard 27″ touchscreen monitor. Mounted on a height and angle adjustable articulated arm with wide sideways extension, the slimline monitor ensures maximum viewing clarity while maintaining driver sightlines.

ABSOLUTE OPERABILITY
Control of exam parameters from any side with a c-arm mounted multi-touch operator console and live image display.

COMPACT DESIGN
Large diameter, lightweight mobile C-arm for easy access to the operating table. Hassle free system repositioning on a compact 2on1 platform with effortless gliding and color-coded system locks.

FLAT PANEL
Experience advanced imaging clarity with a choice of 21 or 30cm Cesium Iodide (CsI) flat panel detector, With a dedicated radiography mode, removable grid and fluoroscopic imaging at up to 30frames per second, PersonaCS offers unsurpassed imaging performance in a compact footprint.

MODULATED POWER
With its powerful 5kW onboard generator, PersonaCS provides over twice the power of typical compact c-arms; improving image quality and x-ray penetration for patients of all sizes.
