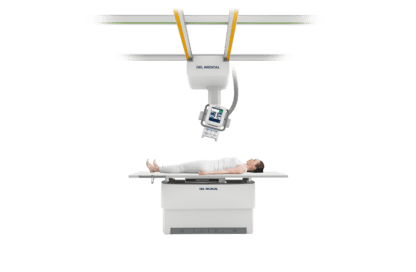

OTC18T Overhead crane system

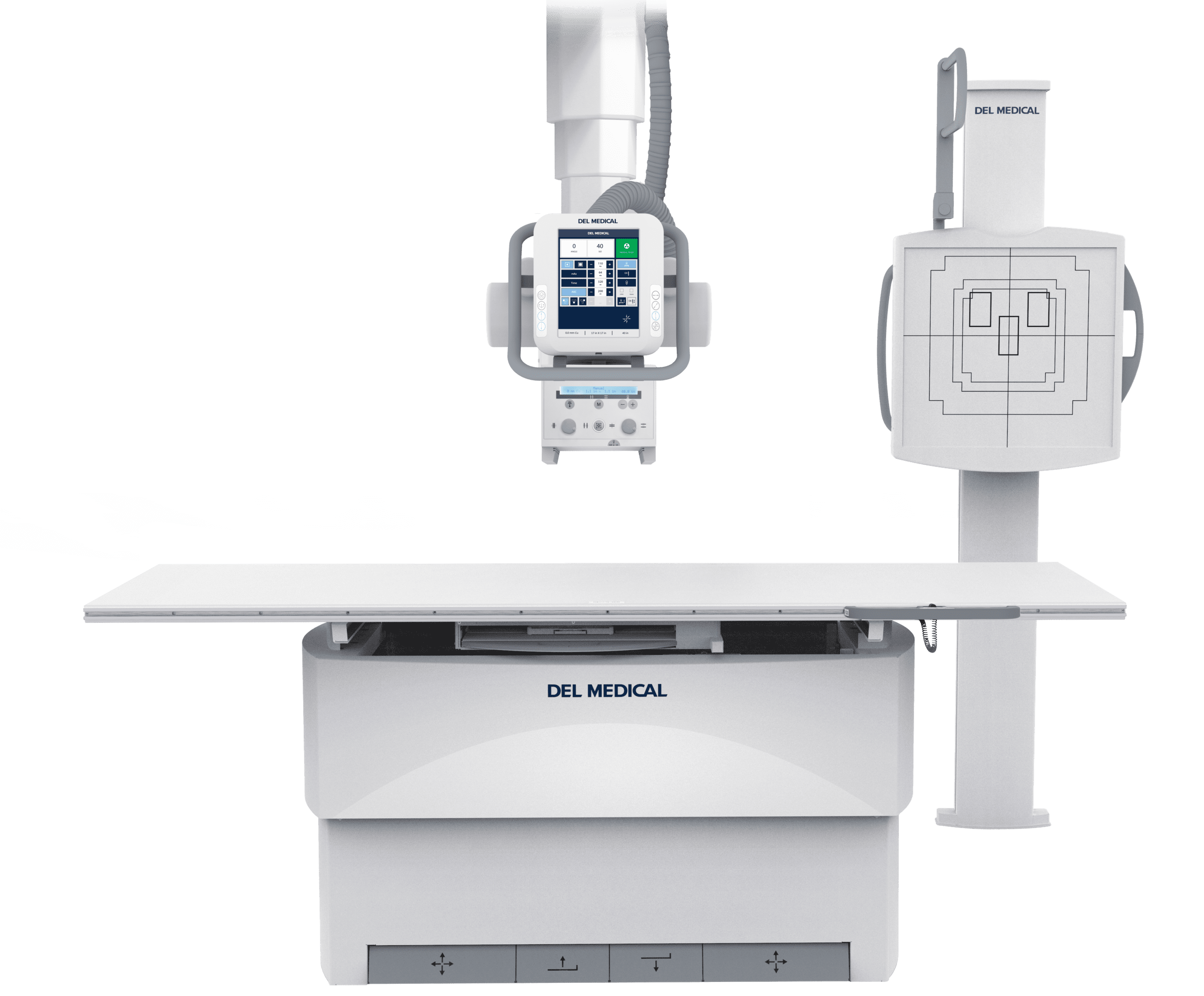

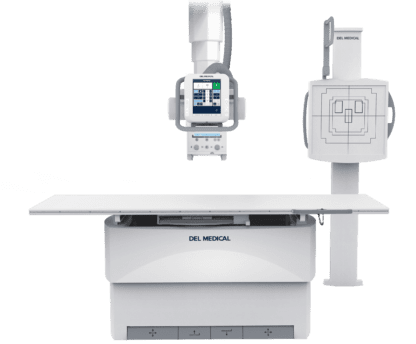

Del MedicalThe OTC18T Radiographic System delivers enhanced patient comfort and optimized workflow. Precisely designed to withstand high volume throughput in hospital radiology departments, medical imaging centers and large orthopedic facilities, the OTC18T performs exceptionally well in a broad range of radiographic studies.

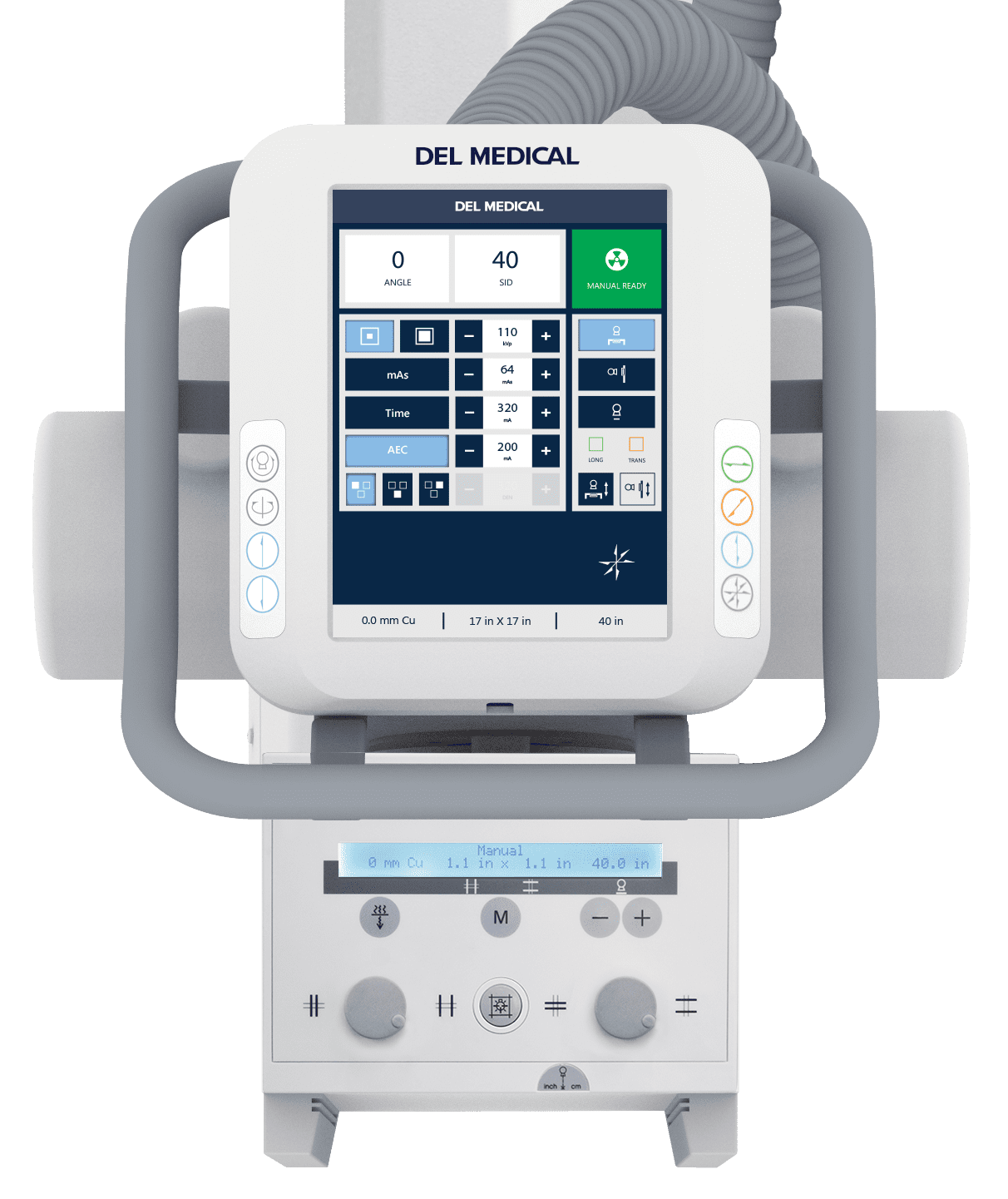

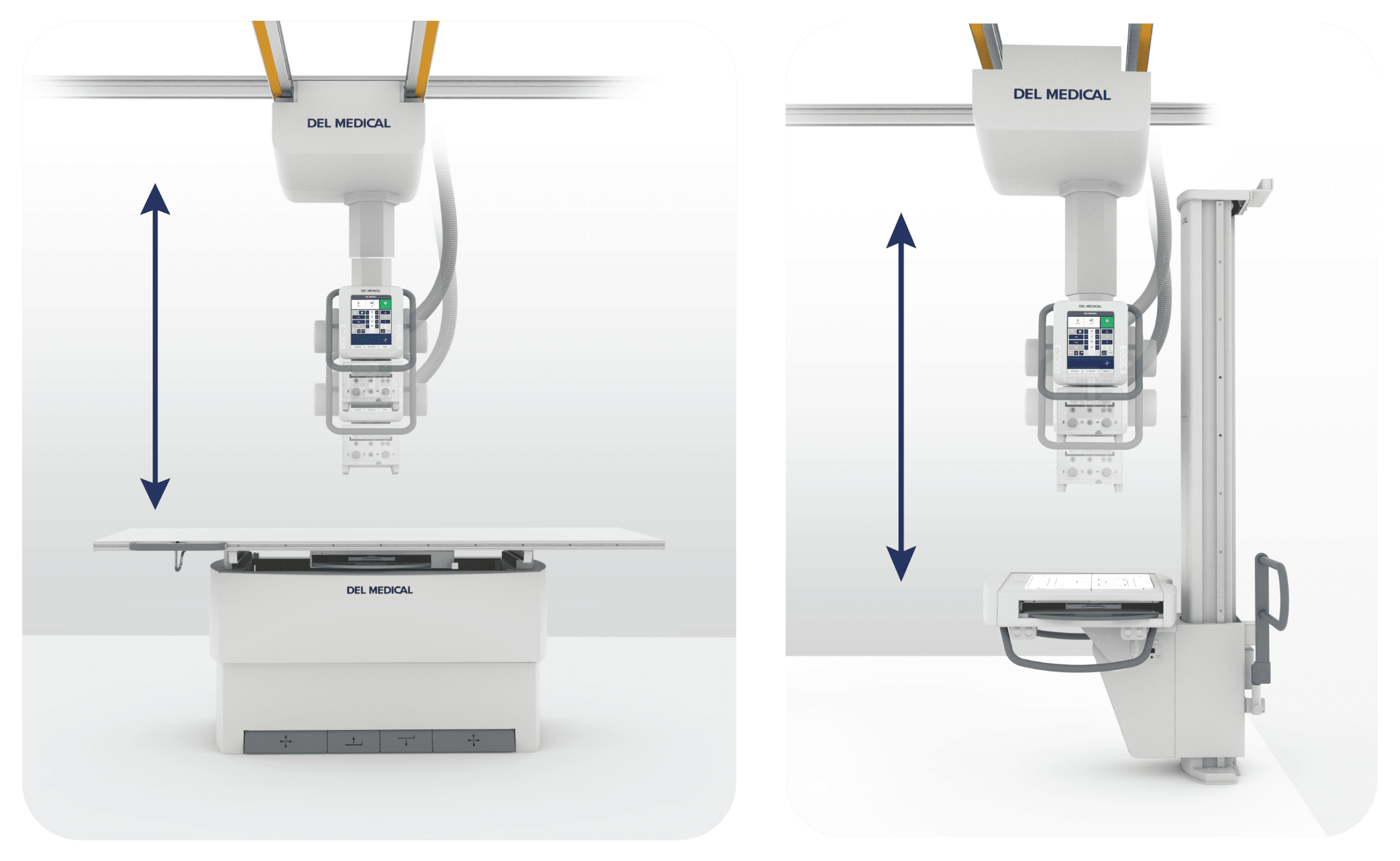

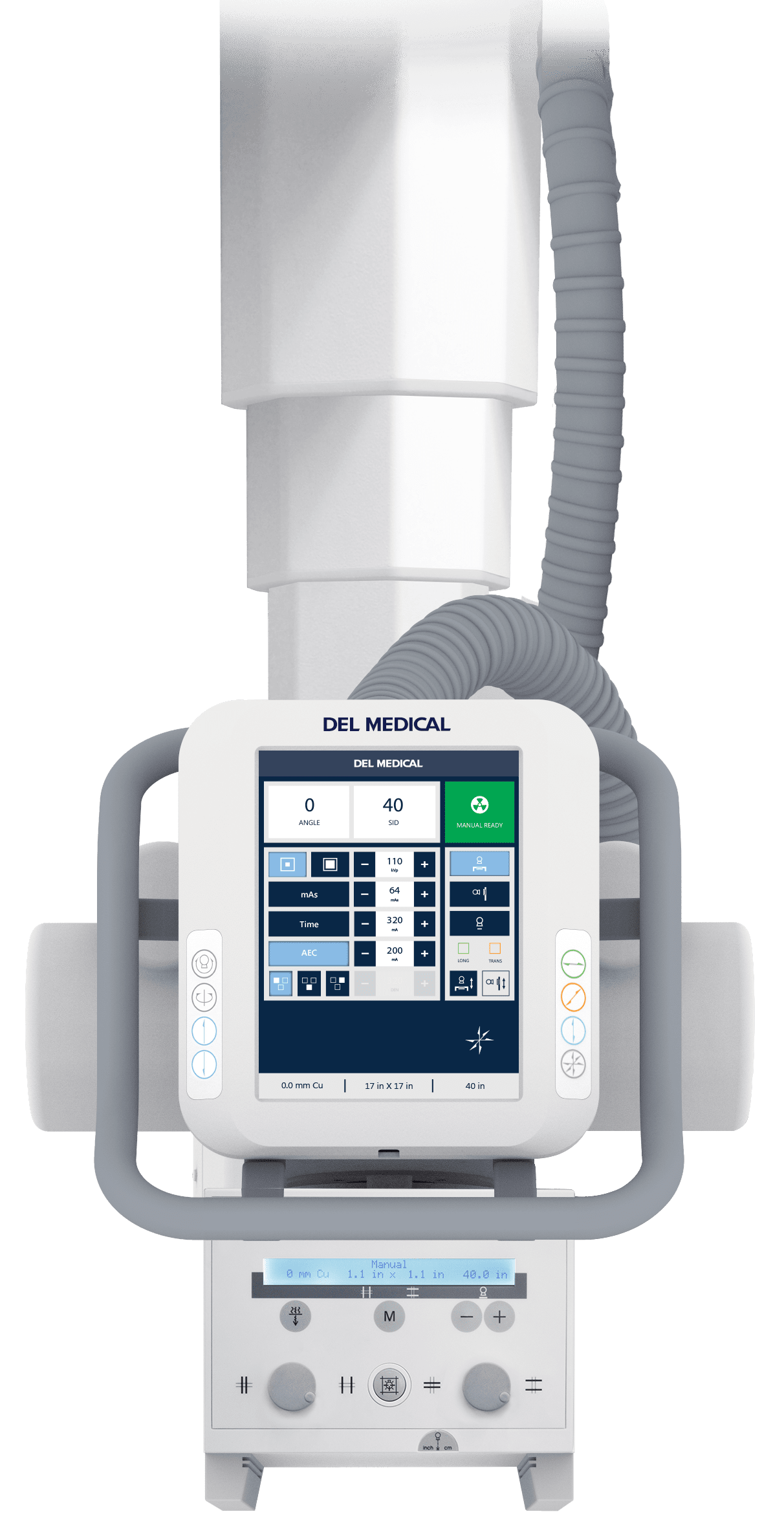

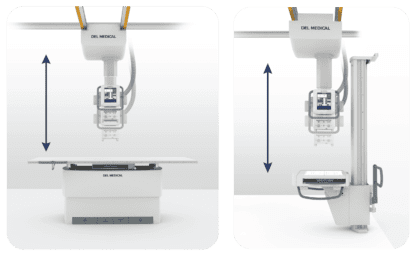

The OTC18T tube crane highlights an advanced, technologist friendly 10.4″ touchscreen console which provides seamless system integration by displaying tube angulation, SID values, and generator control options. Color-coded movement identification buttons provide optimal precision when setting up views. Peaceful and effortless movements are controlled by an electromagnetic braking system enabling fast and secure readjustments of the tube head. Its five-tier telescoping column delivers exceptional vertical movement of 71” (180 cm), capable of performing complete head-to-toe radiographic procedures including upright weight bearing and recumbent table top exams.

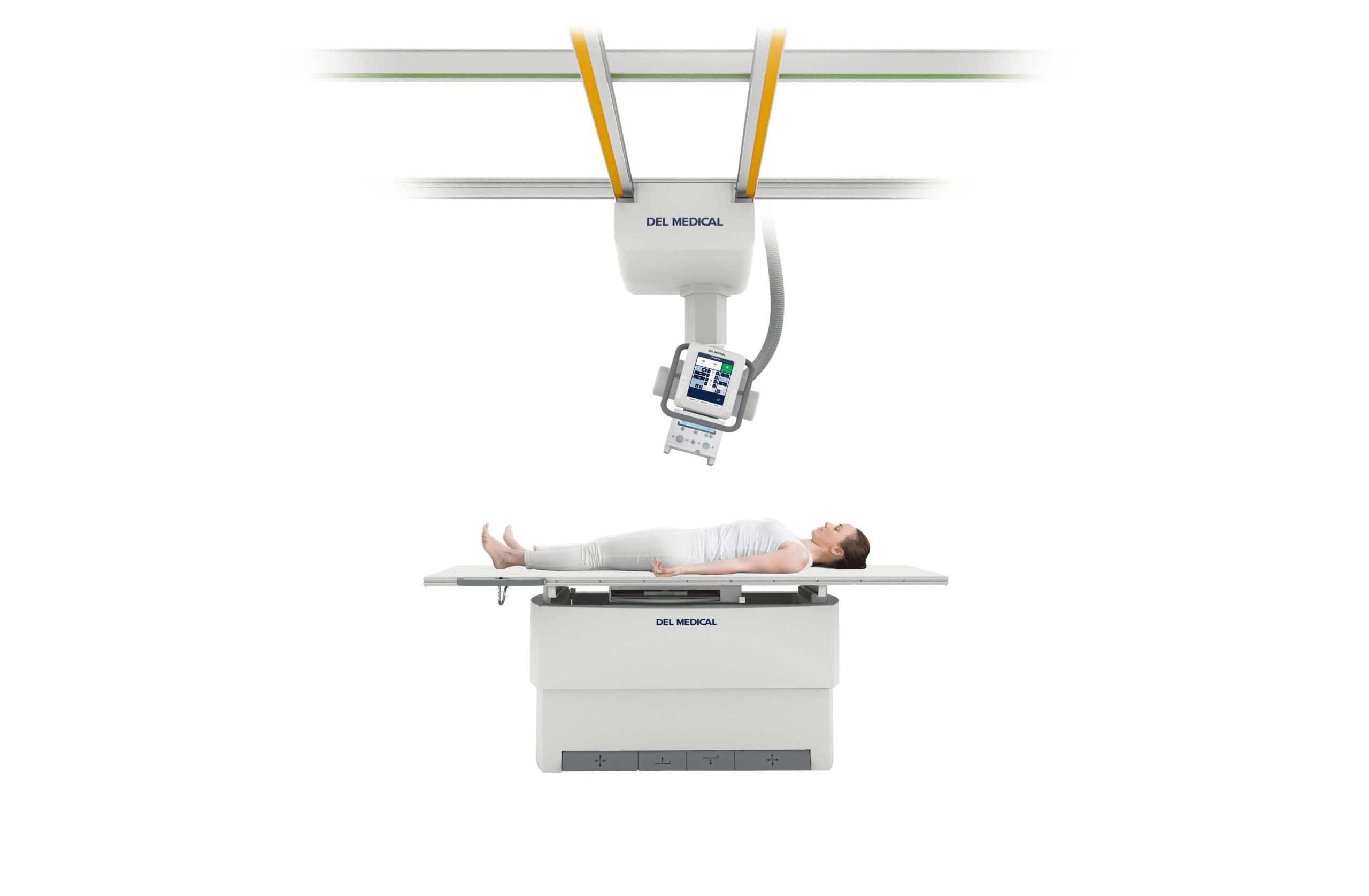

The durable EV800 elevating four-way float top table delivers outstanding safety and usability. Featuring an exclusive four-point lift system and exceptionally quiet motor-drive, its smooth, scratch resistant table top lowers to a height of just 22” to ensure stress-free patient transfers and adjustments. Offering a high patient weight capacity of up to 800lbs (363 kg), stable continuous movement is possible through conveniently placed recessed foot treadles and table-side controls, suitable for increasing technologist performance and satisfaction.

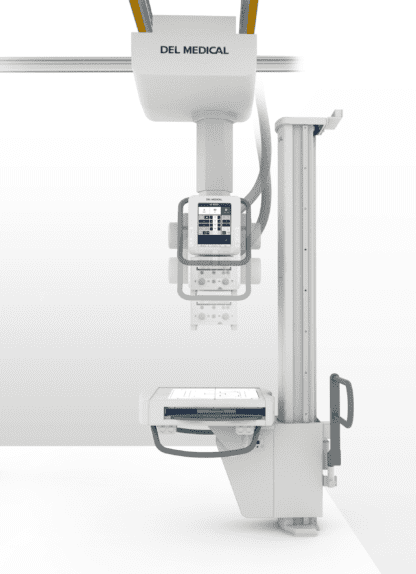

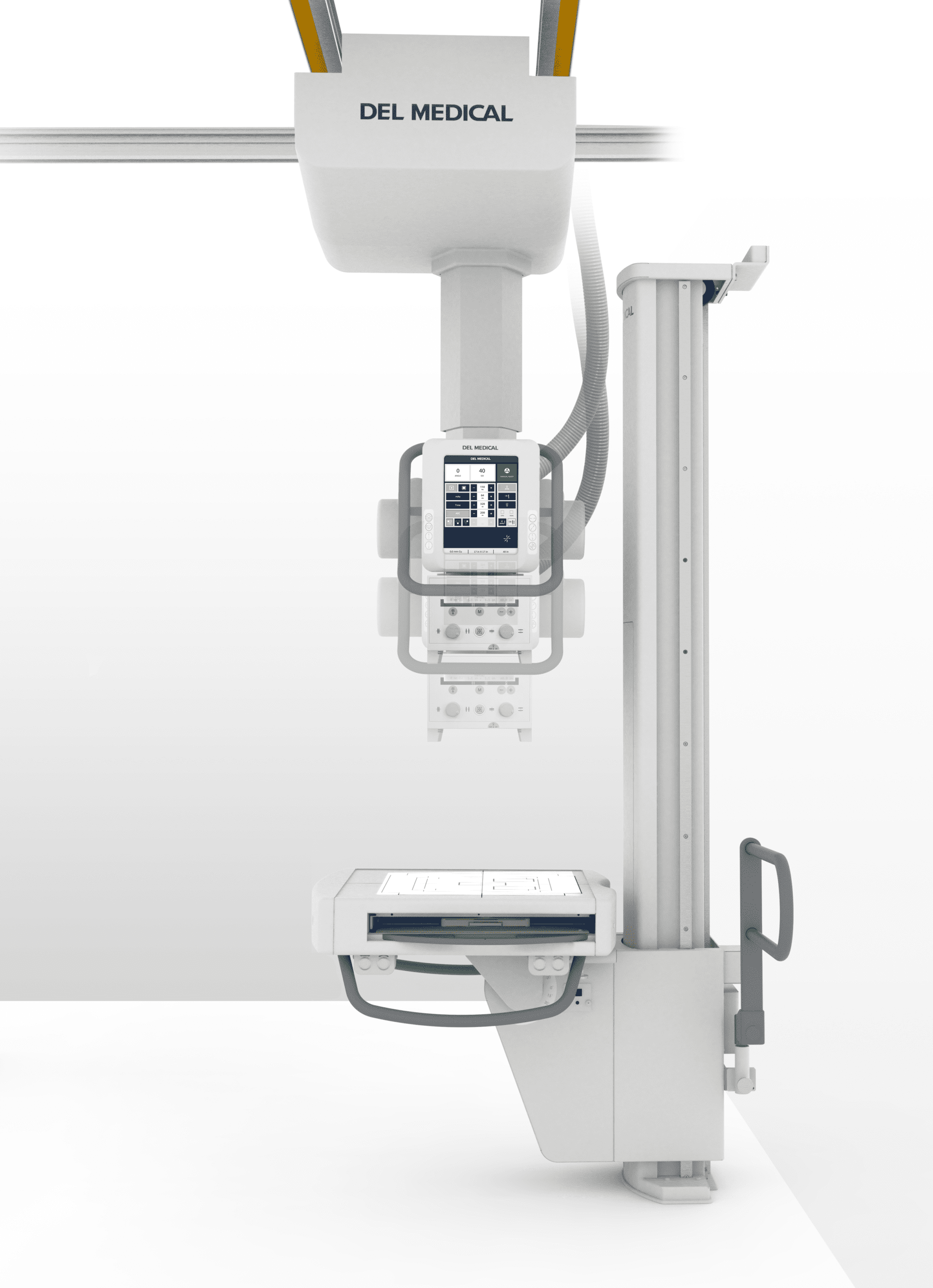

The VT300 wall stand features a tilting image receptor, promoting comfort and precision for standing or seated examinations. Every adjustment is precisely counterbalanced to allow smooth operation with light effort applied by the technologist. This makes the VT300 accommodating to all users regardless of size or strength.
Description
Vertical telescopic travel range:
70.8″ (180 cm) with minimum 32.7″ (83 cm) focal spot to ceiling distance / 15.5” (39.4 cm) focal spot to floor distance with a 9′ ceiling height
Longitudinal travel range: Standard 14′ rail included, 136.2″ min. (346 cm) With optional rail extensions: 219.9″ max (558.5 cm)
Transverse travel range: Standard 10′ Bridge with 9.8′ (0.3 cm) transverse carriage: 86.6″ min. (220 cm) With 13′ bridge & 13.1′ (0.4 cm) transverse carriage: 139.7″ max. (355 cm)
Longitudinal detent positions: Configurable during installation
Tube rotation range (horizontal axis): -120°, +120°, Detent positions at -90°, 0°, +90°
Tube rotation range (vertical axis): -182°, +154°, Detent positions at -180°, -90°, 0°, +90°
Weight: Approximately 507 lbs. (230 kg) with tube & collimator
Power Requirements: 100/240 VAC 50/60 Hz, 3.6 Amps
EV800 Elevating Table:
Patient load capacity: 800 lbs. (363 kg)
Table base length: 53″ (135 cm)
Table base width: 25″ (64 cm)
Table top movement:
Longitudinal, 39.5″ (100.3 cm)
Transverse, 12.75″ (32.3 cm)
Variable height: 22.25″ (56.5 cm) to 34.25″ (87 cm)
Total Bucky travel: 15.5″ (39.3 cm)
Table top length: 86.5″ (220 cm)
Table top width: 36″ (91 cm)
Weight: 563 lbs. (256 kg)
Power requirements: 120/230-240 VAC 50/60 Hz
Options:
– 78″ (198 cm) tabletop length
– 32″ (81 cm) tabletop width
– Lateral cassette holder
– Table-side patient handgrips
– Rotating cassette tray
VT300 Tilting Wall Stand:
Receptor tilt range: +90°/ 20°
Vertical travel range, vertical receptor: 15.5″ (39.4 cm) to 71.1″ (180.6 cm)
Vertical travel range, +90° receptor: Minimum 25.5″ (64.8 cm)
Height: 83.1″ (211 cm)
Depth, vertical receptor: 30″ (76 cm)
Receptor width: 27.25″ (69.2 cm)
Receptor height: 26.5″ (67.3 cm)
Weight: 765.5 lbs. (347.2 kg)
Weight, without counterweights: 368.5 lbs. (167 kg)
Options:
– 8″ (20 cm) extension box
– Overhead patient handgrips
– Rotating cassette tray
