Straight Arm

Del Medical

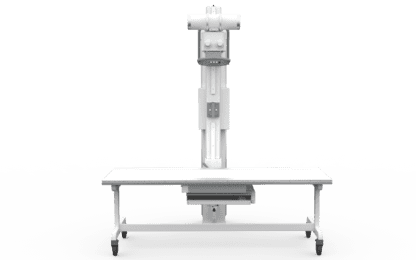

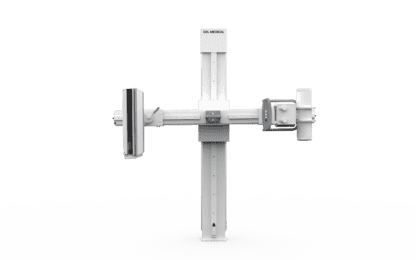

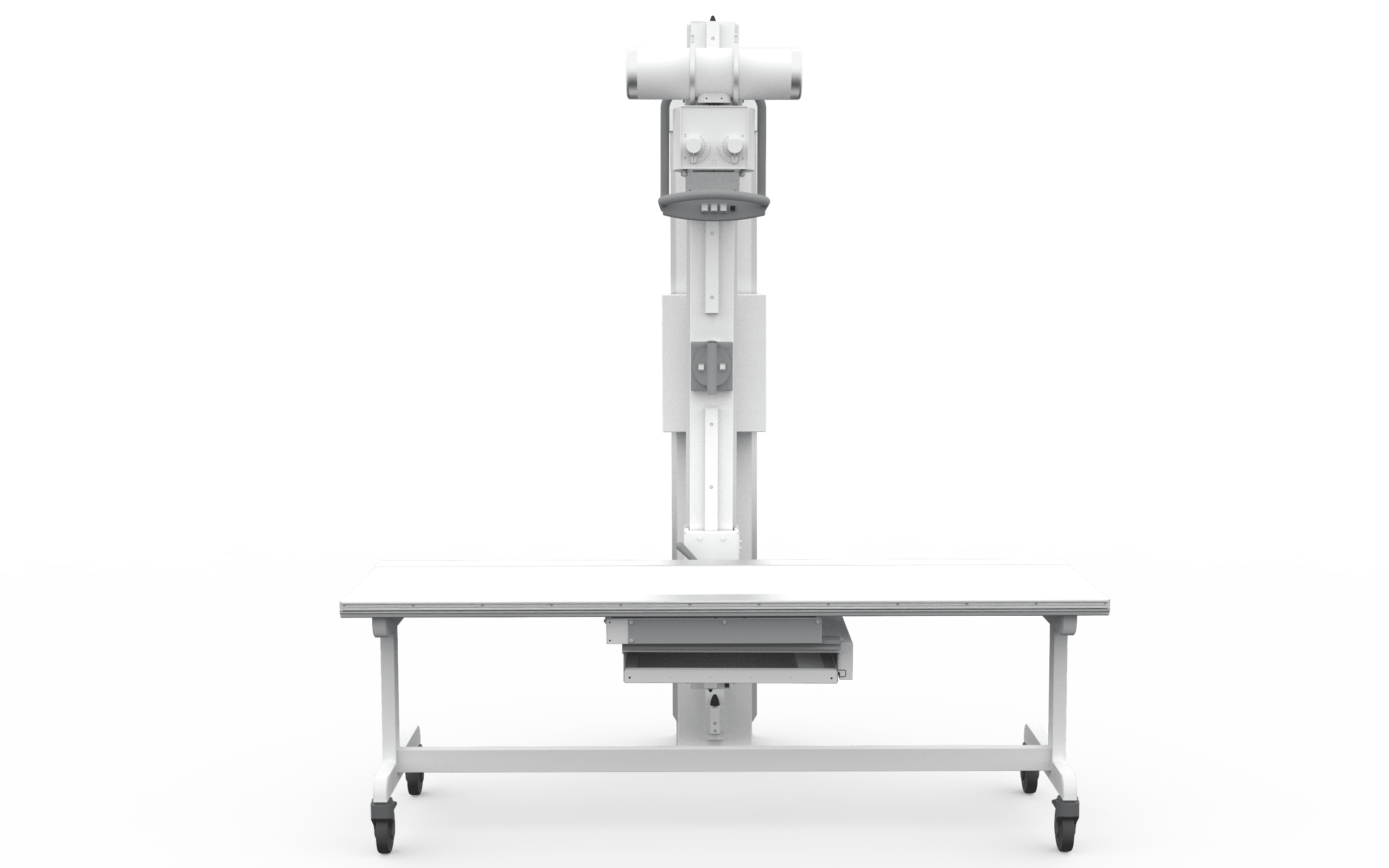

The Universal Straight Arm is an economical and space-efficient X-ray system that can perform a comprehensive range of radiographic procedures. Its flexibility permits imaging of patients sitting or standing, as well as recumbent when optional mobile table is present.

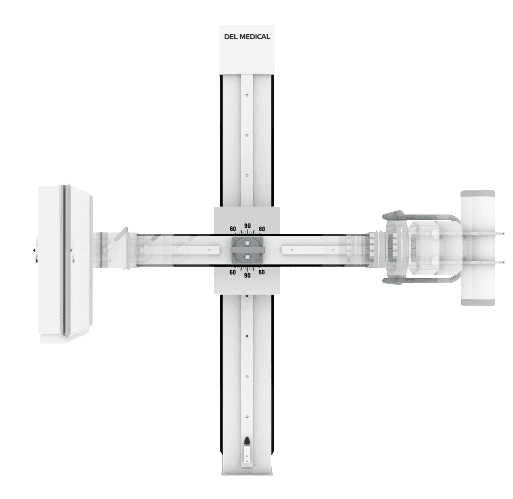

The system’s counter-weighted design promotes smooth and precise adjustments with the use of just one hand. The Straight Arm operates on a single plane, meaning the X-ray tube and image receptor will always be perfectly aligned, regardless of positioning.

Safety enhancing electromagnetic brakes are applied to all system movements with exception of the tilting receptor tray, which engages at 0°.

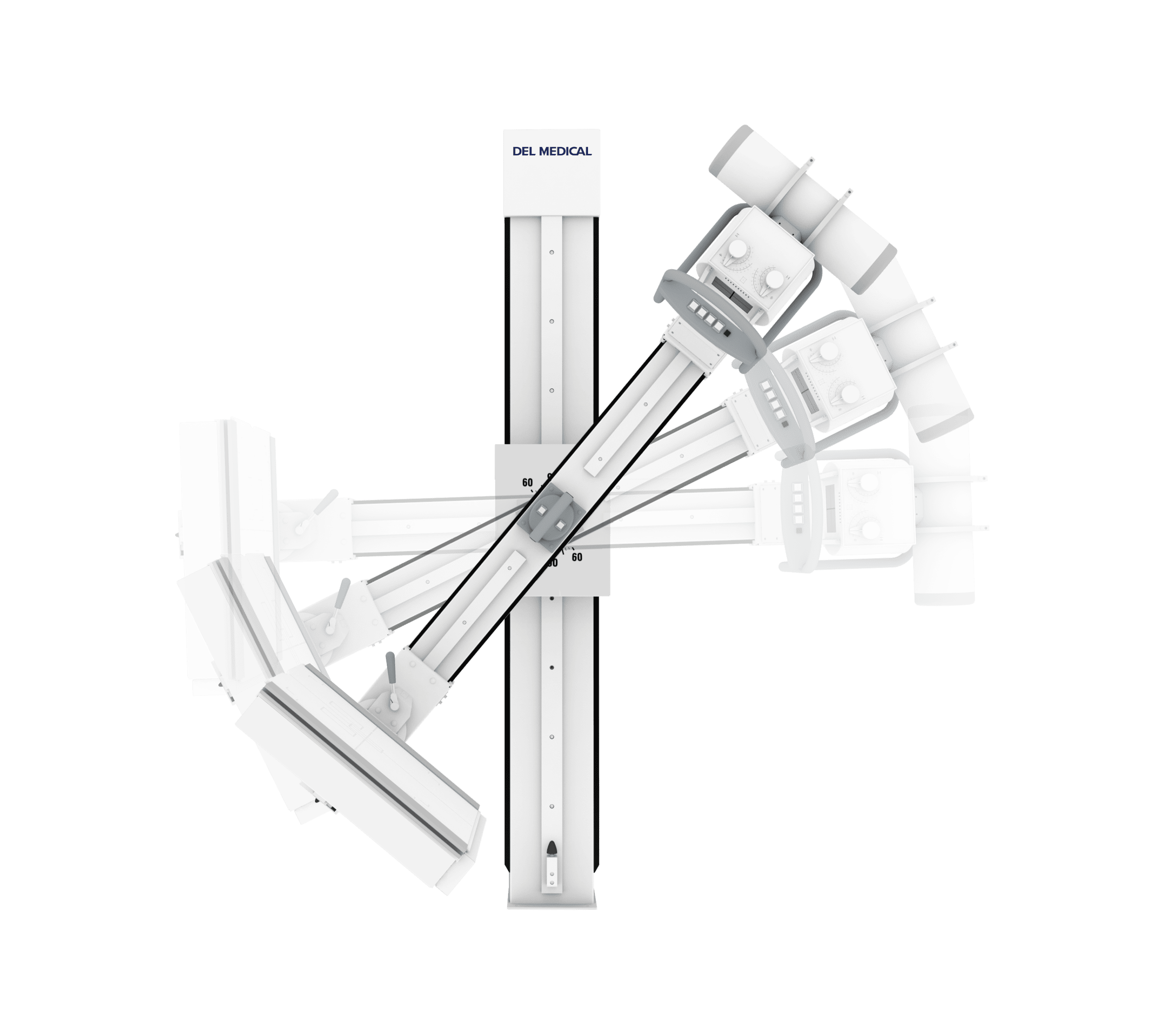

​The expanded vertical lift from 17 to 64″ (43 to 163 cm) removes the need for any additional equipment, such as a wall stand. Easily capture head to knee images of a standing patient without unnecessary repositioning. Its rotating arm can turn uninterrupted from 135° to -35° and its receptor tray can tilt over a ±45° range making nearly any view accessible. Source to image-receptor distance (SID) adjustments are motorized and can be changed to any preferred distance.

Category: Tag:


Universal Straight Arm:

Swivel range: 135° to -35°

Vertical travel: 16.5″ (42 cm) to 64.2″ (163 cm)

Bucky rotation:  ±45°

SID adjustment:  39.4″ (100 cm) to 78.7″ (200 cm) (motorized)

Height: 88.4″ (224.6 cm)

Width: 89″ (226 cm)

Depth: 51.2″ (130 cm)
